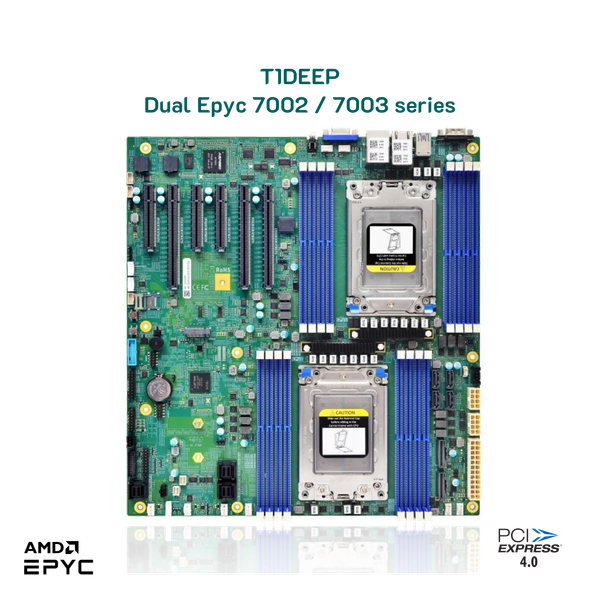

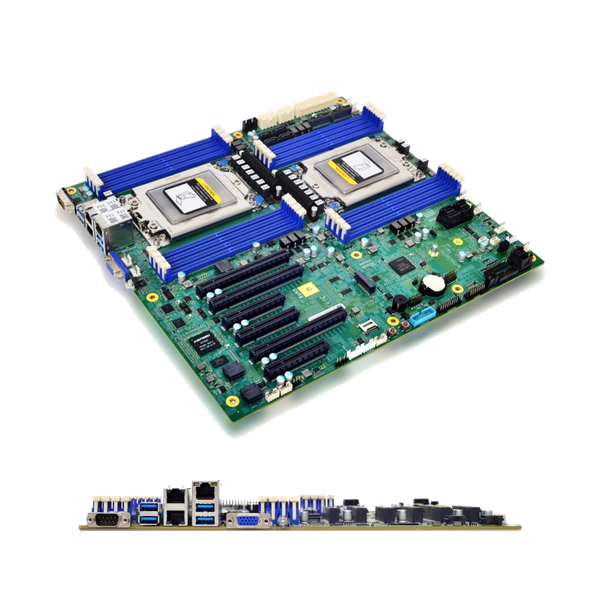

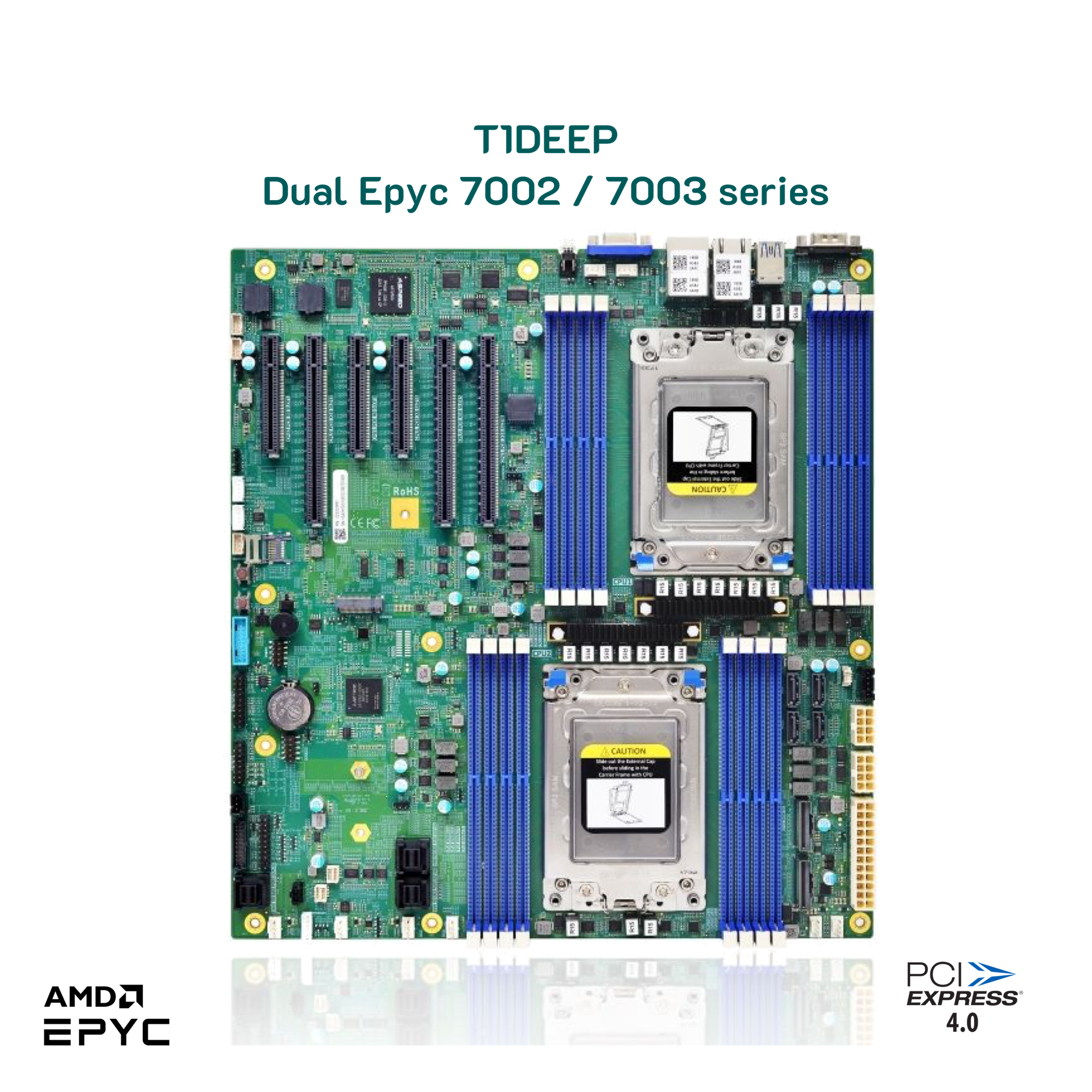

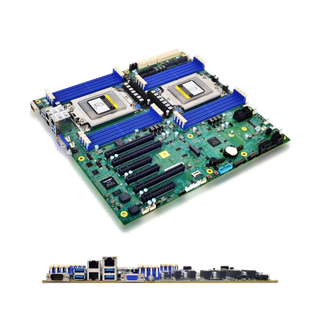

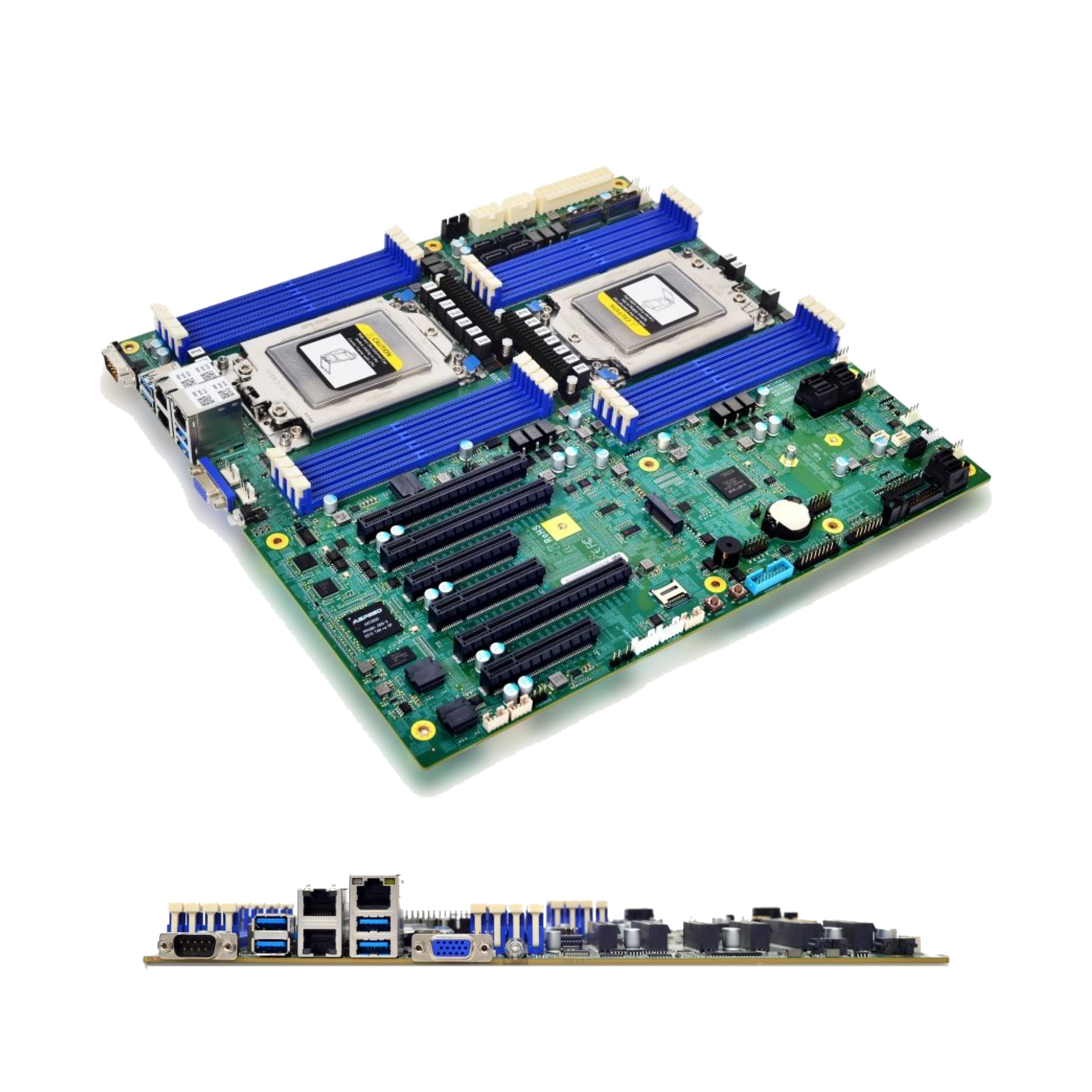

Mainboard server T1DEEP dual AMD EPYC 7002/7003 series

EATX, 12" x 13"

Supports 2 AMD EPYC™ 7002/7003 series processors with up to 64 cores and a maximum power of 280W

4 xGMI links

16 DDR4 memory slots

Up to 3200MHz with RDIMM/LRDIMM support

Integrated 6Gb/s SATA controller; Supports external 12Gb/s SAS HBAs and 12Gb/s SAS RAID controllers

Supports 12 onboard SATA 3.0, 2 SFF-8643+4 7pin SATA

Supports 1 x M.2 (PCIe 4.0 x4, 2280 & 22110)

Supports 4 NVMe (2 SlimSAS PCIe 4.0 x8)

Supports 6 PCIe expansion slots (3 PCIe 4.0 x16 + 3 PCIe 4.0 x8)

1 x 1Gb RJ45 dedicated management network port

2 x 1Gb RJ45 data network ports with NCSI support

1 VGA, 2 USB3.0

1 VGA, 4 USB3.0, 1 RJ45 management network port, 1 COM port, 2 1Gb RJ45 data network ports

Integrated ASPEED AST2500 BMC management chip, supporting IPMI2.0, KVM, virtual media

1 x LPC TPM header

ATX power supply

8 x 4-pin fan connectors with auto-speed regulation

5ºC - 35ºC (without direct light)

8% - 90%

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Oracle Linux, VMware ESXi, Citrix XenServer
