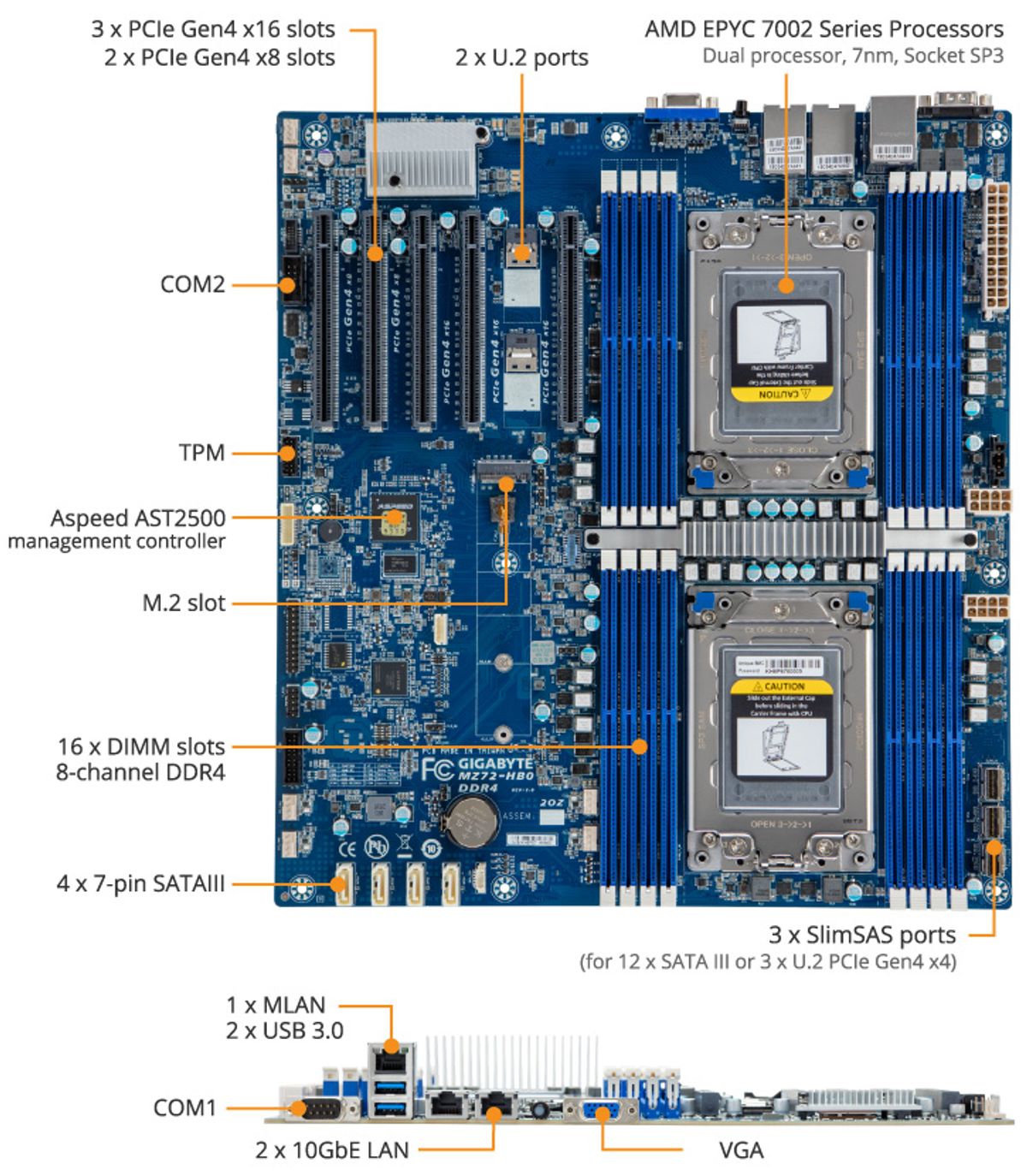

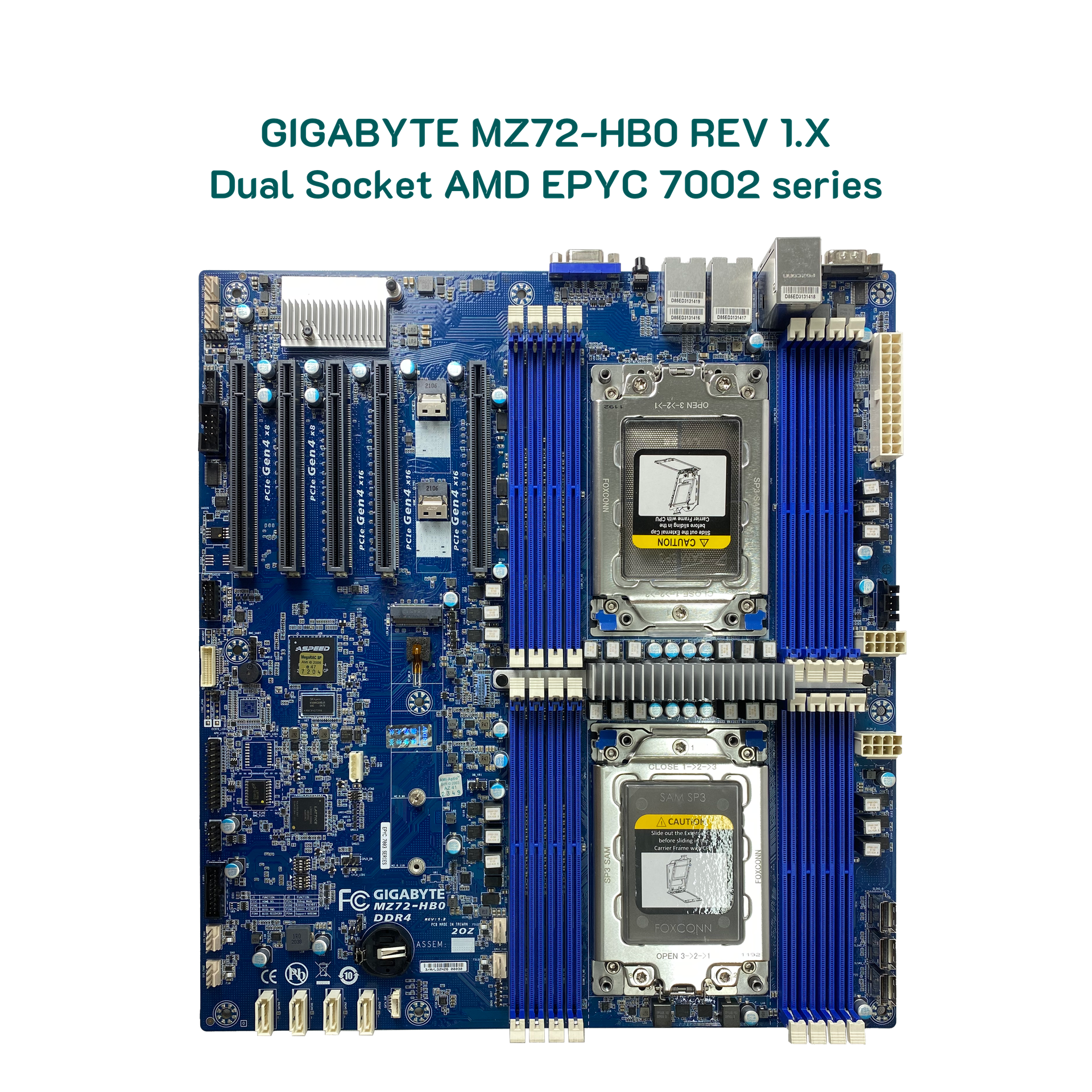

Mainboard Gigabyte MZ72-HB0 Dual Epyc 7002

e-ATX / EEB

30.5cm x 33.0cm

AMD EPYC™ 7002 series processor family

2

SP3 / LGA 4094

Tối đa 64 nhân / 128 luồng / socket

280W / socket

System on chip

16 khe DIMM DDR4

Tối đa 2.0 TB Registered ECC DDR4 3200MHz

REG ECC DIMM - RDIMM

8GB, 16GB, 32GB, 64GB, 128GB

_

3

2

0

1

Broadcom® BCM57416

4 x 7-pin SATA 6Gb/s ports<br />*3 x SlimSAS with 12 x SATA 6Gb/s or 3 x U.2 PCIe Gen4 x4 ports

N/A

N/A

Integrated in Aspeed® AST2500<br />2D Video Graphic Adapter with PCIe bus interface<br />1920x1200@60Hz 32bpp

N/A

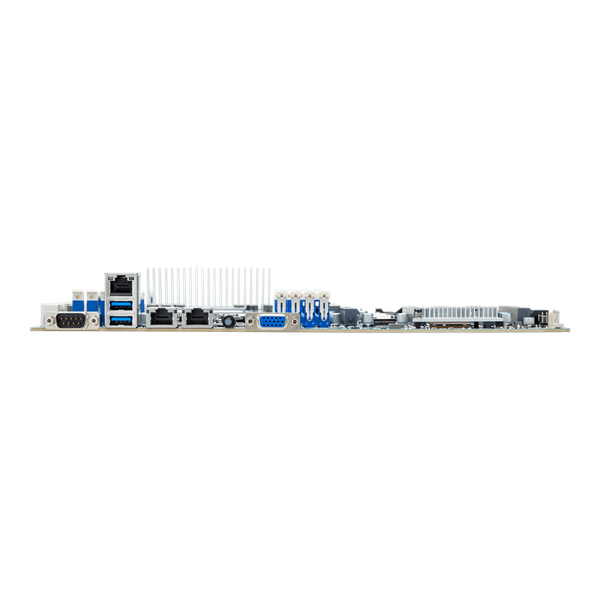

2 x USB 3.0<br />1 x VGA<br />1 x COM_1<br />2 x RJ45<br />1 x MLAN<br />1 x ID button with LED

1 x 24-pin ATX main power connector<br />2 x 8-pin ATX 12V power connectors<br />5 x SlimSAS connectors<br />4 x SATA 7-pin connectors<br />1 x M.2 slot<br />2 x CPU fan headers<br />4 x System fan headers<br />1 x USB 3.0 header<br />1 x USB 2.0 header<br />1 x COM_2 header<br />1 x TPM header<br />1 x Front panel header<br />1 x PMBus connector<br />1 x IPMB connector<br />1 x Clear CMOS jumper<br />1 x BIOS recovery jumper

1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0

1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0

1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1

1 x PCIe x16 (Gen4 x8 bus) slot, from CPU_0

1 x PCIe x16 (Gen4 x8 bus) slot, from CPU_1

1

M.2 PCIe Gen 4 x4 - size 2280/22110

2

SlimSAS 4i type

PCIe Gen4 x4, from CPU_0

PCIe Gen4 x4, from CPU_0

1 x TPM header with SPI interface

Optional

Windows Server 2016 (X2APIC/256T not supported<br />Windows Server 2019<br /><br />Red Hat Enterprise Linux 7.6 (x64) or late<br />Red Hat Enterprise Linux 8.0 (x64) or late<br />Red Hat Enterprise Linux 9.0 (x64) or late<br /><br />SUSE Linux Enterprise Server 12 SP4 (x64) or late<br />SUSE Linux Enterprise Server 15 SP1 (x64) or late<br /><br />Ubuntu 16.04.6 LTS (x64) or late<br />Ubuntu 18.04.3 LTS (x64) or late<br />Ubuntu 20.04 LTS (x64) or late<br /><br />VMware ESXi 6.5 EP15 or late<br />VMware ESXi 6.7 Update3 or late<br />VMware ESXi 7.0 or late<br />VMware ESXi 8.0 or late<br /><br />Citrix Hypervisor 8.1.0 or later

Aspeed® AST2500 management controller<br />GIGABYTE Management Console (AMI MegaRAC SP-X) web interface<br /><br />Dashboard<br />HTML5 KVM<br />Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)<br />Sensor Reading History Data<br />FRU Information<br />SEL Log in Linear Storage / Circular Storage Policy<br />Hardware Inventory<br />Fan Profile<br />System Firewall<br />Power Consumption<br />Power Control<br />LDAP / AD / RADIUS Support<br />Backup & Restore Configuration<br />Remote BIOS/BMC/CPLD Update<br />Event Log Filter<br />User Management<br />Media Redirection Settings<br />PAM Order Settings<br />SSL Settings<br />SMTP Settings

1 x 24-pin ATX main power connector<br />2 x 8-pin ATX 12V power connectors
