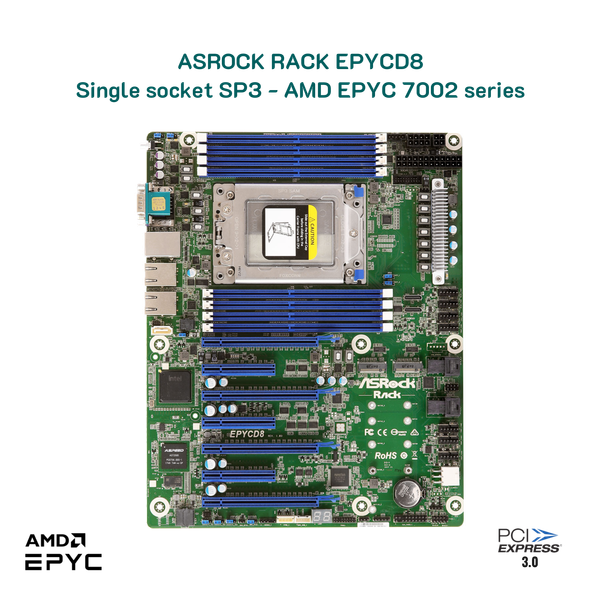

Mainboard server Asrock Rack EPYCD8

ATX

305W x 244D mm

AMD EPYC 7002 Series AMD EPYC 7001 Series

1

SP3

64 nhân / socket

280W

System on chip

8 khe DIMM DDR4

8 kênh

Tối đa 1TB Registered ECC DDR4 3200MHz

REG ECC DIMM - RDIMM

8GB, 16GB, 32GB

2 x RJ45 GLAN by Intel® i350

1 x RJ45 Dedicated IPMI LAN port by RTL8211E

9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port)

N/A

N/A

9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port)

Aspeed AST2500

N/A

-

-

PCIe3.0 x16

PCIe3.0 x8

PCIe3.0 x16

PCIe3.0 x8

PCIe3.0 x16

PCIe3.0 x8

PCIe3.0 x16

1

2 (M2_1: 2230/2242/2260/2280, SATA/PCIE(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4))

2

ASPEED AST2500

1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot)

1 (includes chassis intrusion, location button & LED, and front LAN LED)

1

7 Fans (6-pin, 1CPU/4Front/2Rear)

1

1

1

1

1

1

1 (supports 2 USB 3.0 ports)
