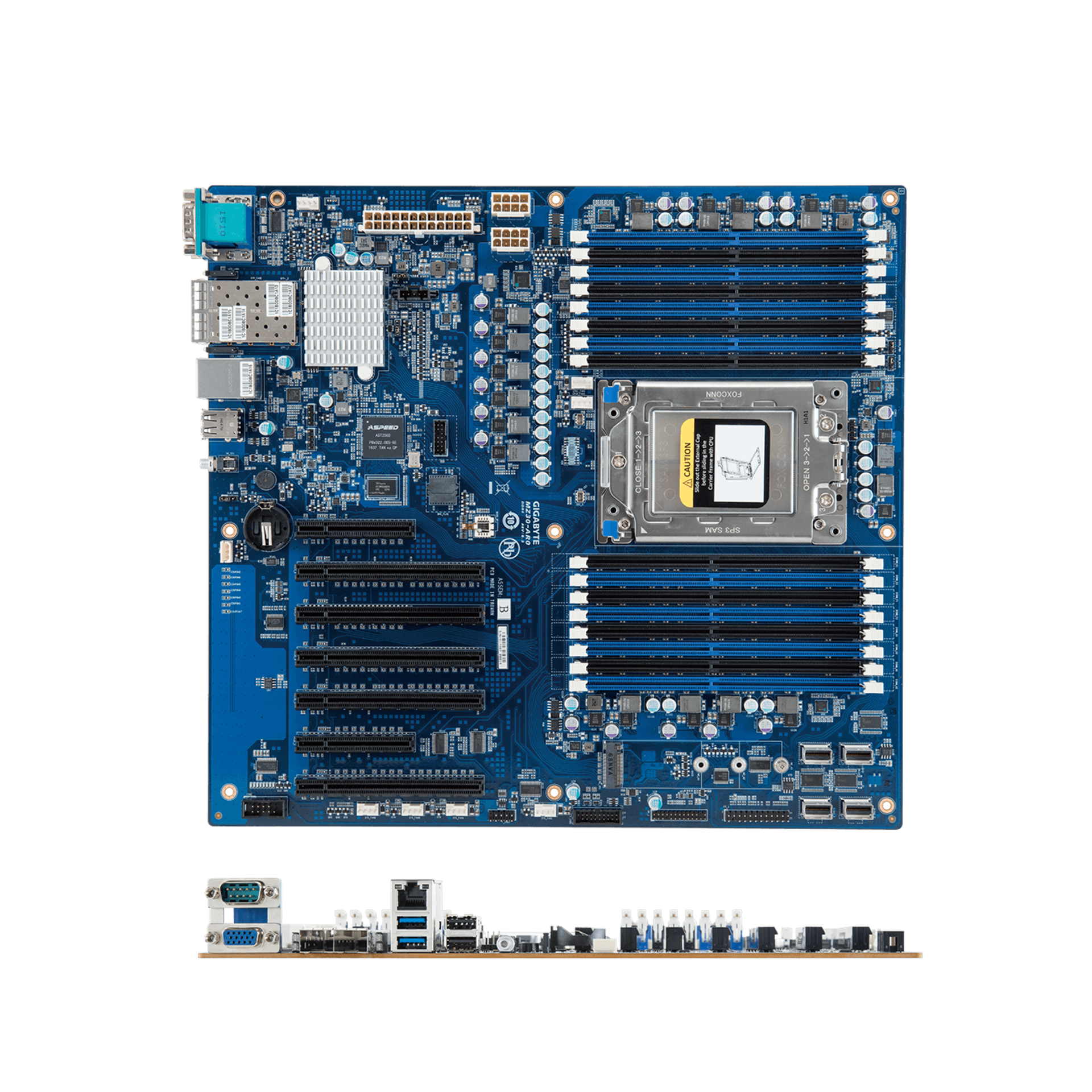

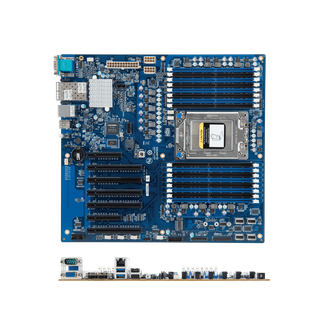

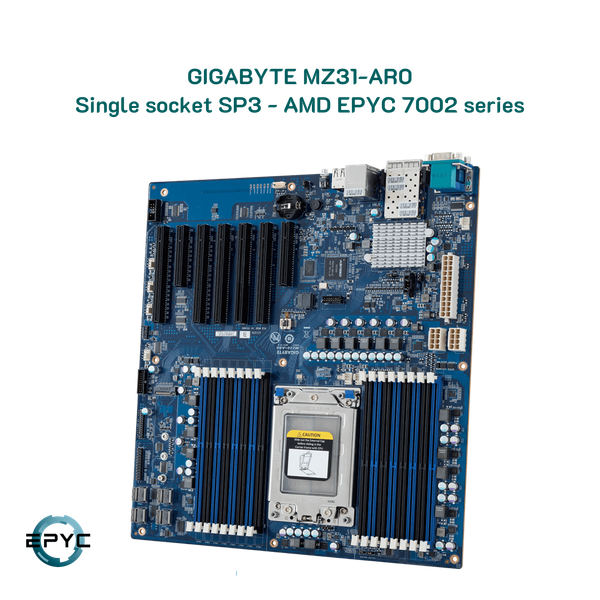

Mainboard server Gigabyte MZ31-AR0 Single AMD EPYC 7002 series

Thông số kỹ thuật

• Physical Stats

  • Form factor:

    e-ATX / EEB
  • Kích thước:

    30.5cm x 33.0cm
• CPU

  • CPU:

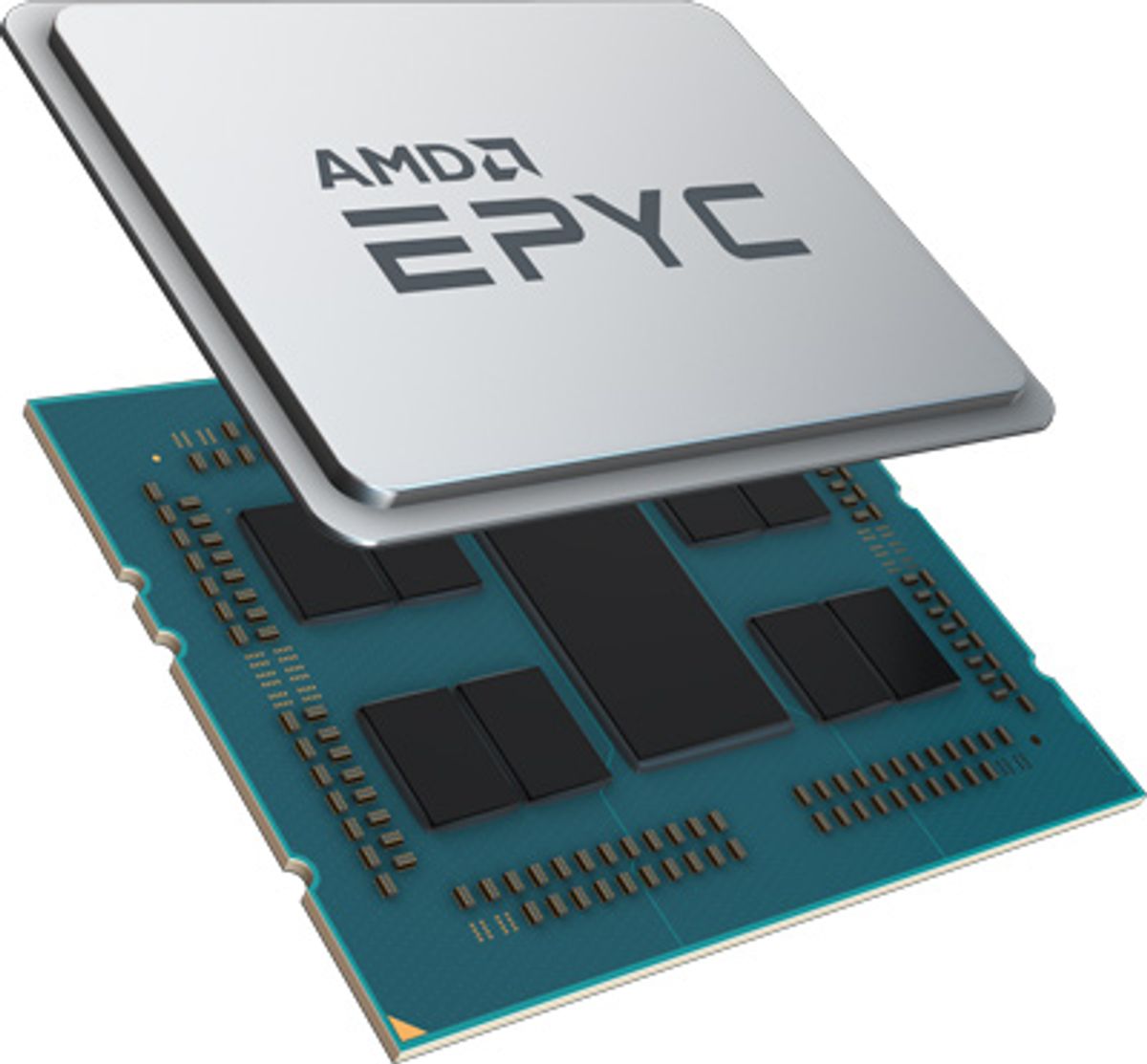

    AMD EPYC 7002 Series
    AMD EPYC 7001 Series
  • Số socket:

    1
  • Loại chân cắm socket:

    SP3
  • Số nhân CPU / socket:

    64 nhân / socket
  • TDP / socket

    225W
  • Chipset:

    System on chip
• RAM

  • Số khe RAM:

    16 khe DIMM DDR4
  • Số kênh RAM:

    8 kênh
  • Dung lượng RAM:

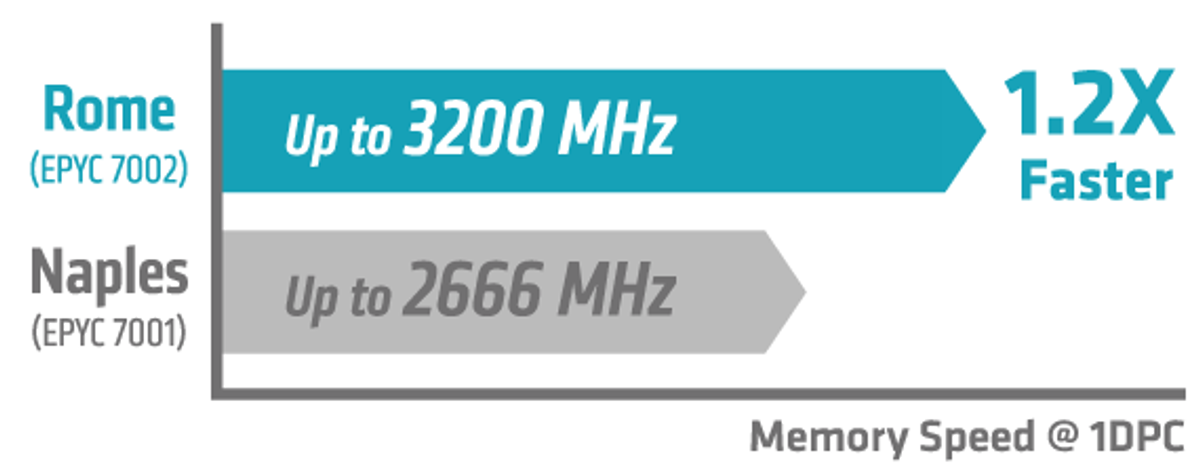

    Tối đa 2TB Registered ECC DDR4 3200MHz
  • Loại RAM:

    REG ECC DIMM - RDIMM
  • Kích thước:

    8GB, 16GB, 32GB, 64GB, 128GB
• Network

  • LAN tích hợp
  • Số cổng RJ-45:

    3
  • Số cổng RJ-45 10GBs

    2
  • Số cổng RJ-45 1GBs management LAN

    1
  • LAN controller

    Broadcom BCM 57810S
• Giao diện lưu trữ

  • SATA:

    4 x SlimSAS, total 16 x SATA III 6Gb/s ports
  • RAID:

    N/A
  • SAS:

    N/A
• Video

  • VGA:

    Aspeed AST2500
• Audio

  • Audio:

    N/A
• Cổng I/O

  • Sau:

    2 x USB 3.0
    2 x USB 2.0
    1 x VGA
    1 x COM_1
    2 x SFP+
    1 x MLAN
    1 x ID button with LED
  • Trong:

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    4 x SlimSAS connectors
    1 x M.2 slot
    2 x CPU fan headers
    5 x System fan headers
    1 x USB 3.0 header
    1 x USB 2.0 header
    1 x COM_2 header
    1 x TPM header
    1 x Front panel header
    2 x LAN activity LED
    1 x HDD back plane board header
    1 x PMBus connector
    1 x IPMB connector
    1 x Clear CMOS jumper
    1 x BIOS recovery jumper
    1 x Buzzer
• Khe cắm PCIe mở rộng

  • Slot 1:

    1 x PCIe 3.0 x16
  • Slot 2:

    1 x PCIe 3.0 x8
  • Slot 3:

    1 x PCIe 3.0 x16
  • Slot 4:

    1 x PCIe 3.0 x16
  • Slot 5:

    1 x PCIe 3.0 x8
  • Slot 6:

    1 x PCIe 3.0 x16
  • Slot 7:

    1 x PCIe 3.0 x8
• Khe cắm M.2

  • Số khe M.2 trên mainboard:

    1
  • Slot 1:

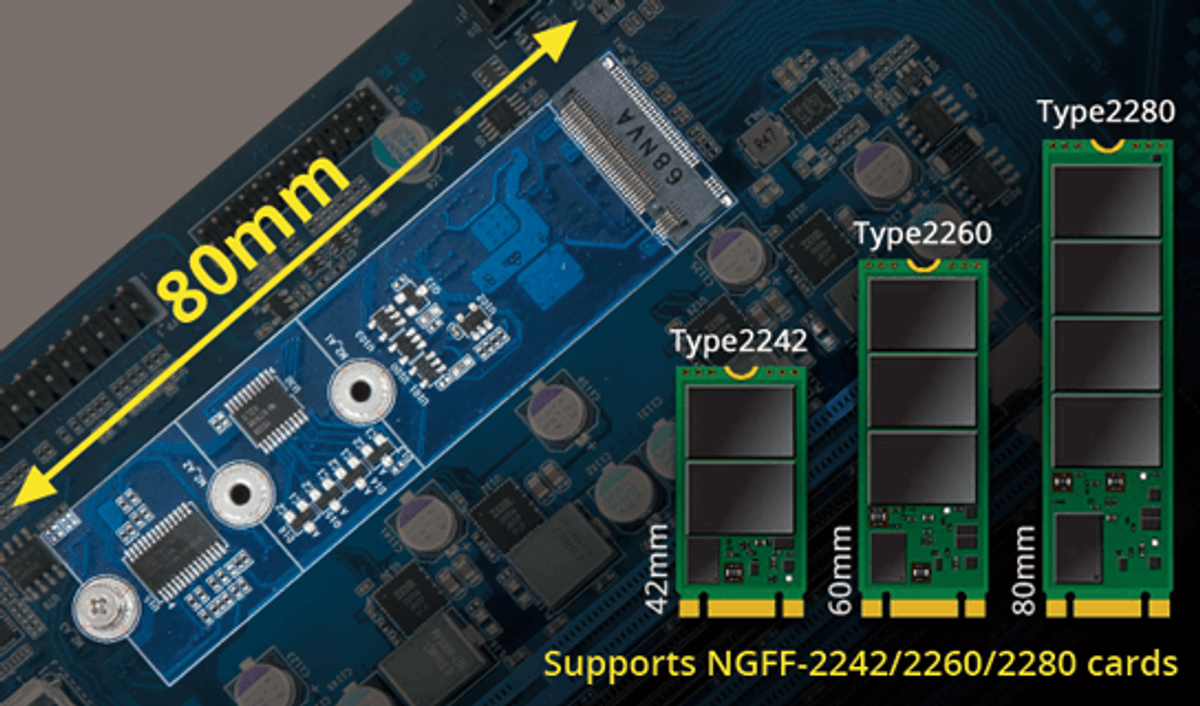

    M.2 PCIe Gen 3 x4 - size 2242/2260/2280, hỗ trợ cả SATA và NVMe
• Board management

  • Quản lý bo mạch chủ

    Aspeed® AST2500 management controller
    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
    Dashboard
    JAVA Based Serial Over LAN
    HTML5 KVM
    Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
    Sensor Reading History Data
    FRU Information
    SEL Log in Linear Storage / Circular Storage Policy
    Hardware Inventory
    Fan Profile
    System Firewall
    Power Consumption
    Power Control
    LDAP / AD / RADIUS Support
    Backup & Restore Configuration
    Remote BIOS/BMC/CPLD Update
    Event Log Filter
    User Management
    Media Redirection Settings
    PAM Order Settings
    SSL Settings
    SMTP Settings
