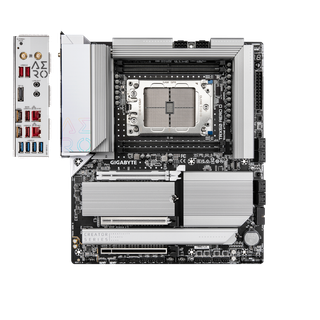

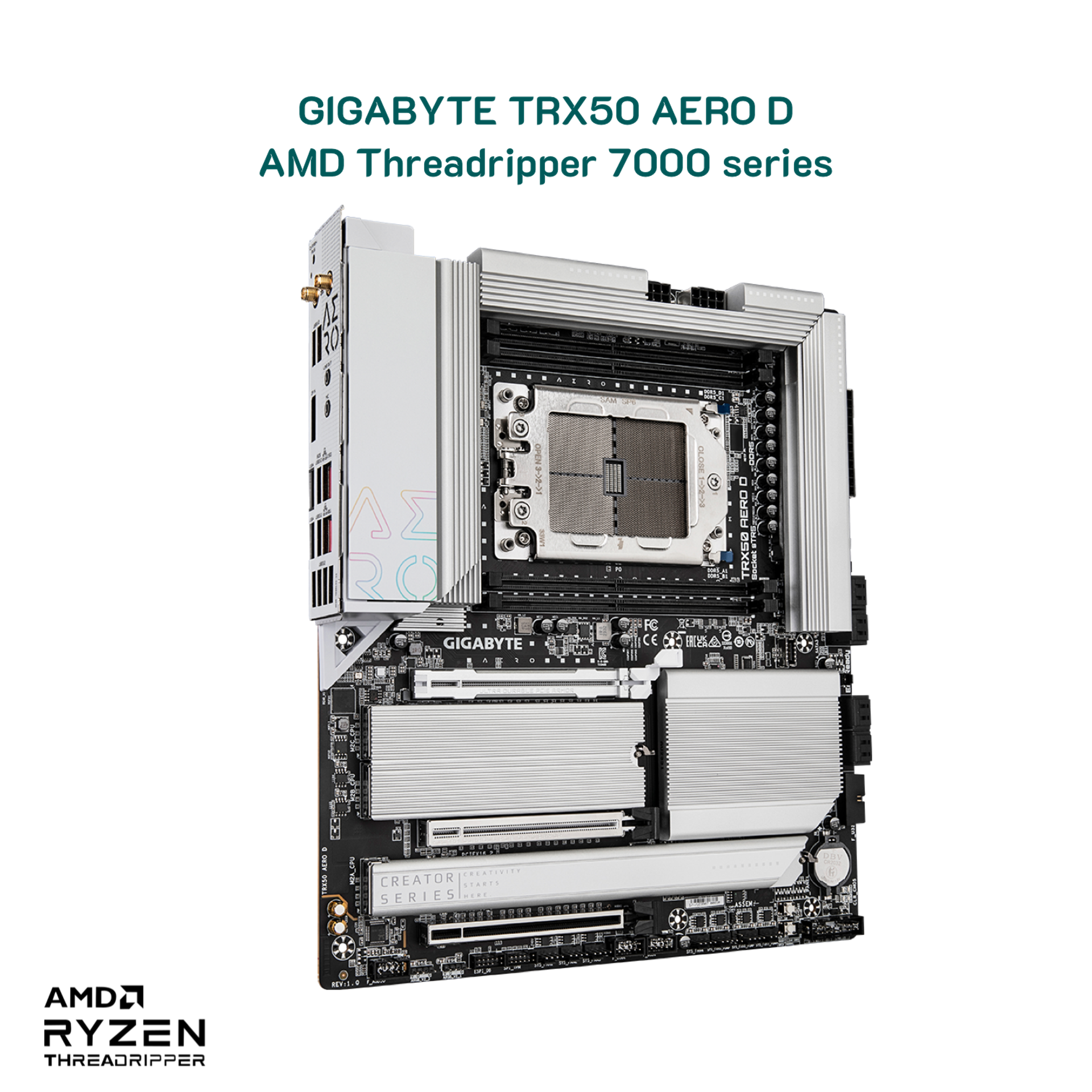

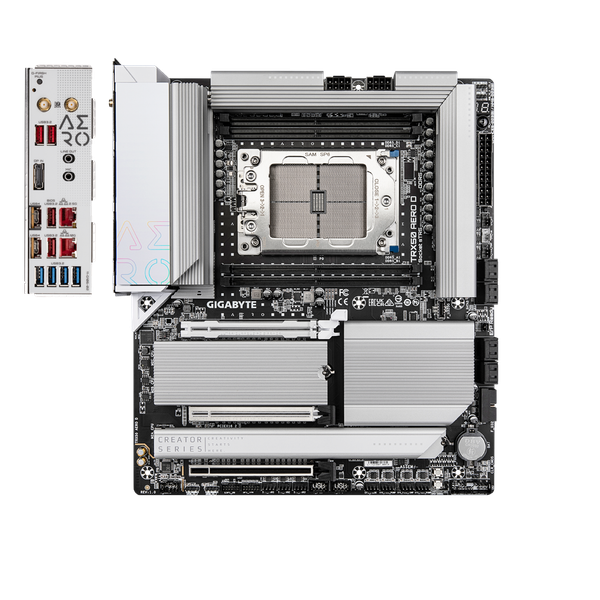

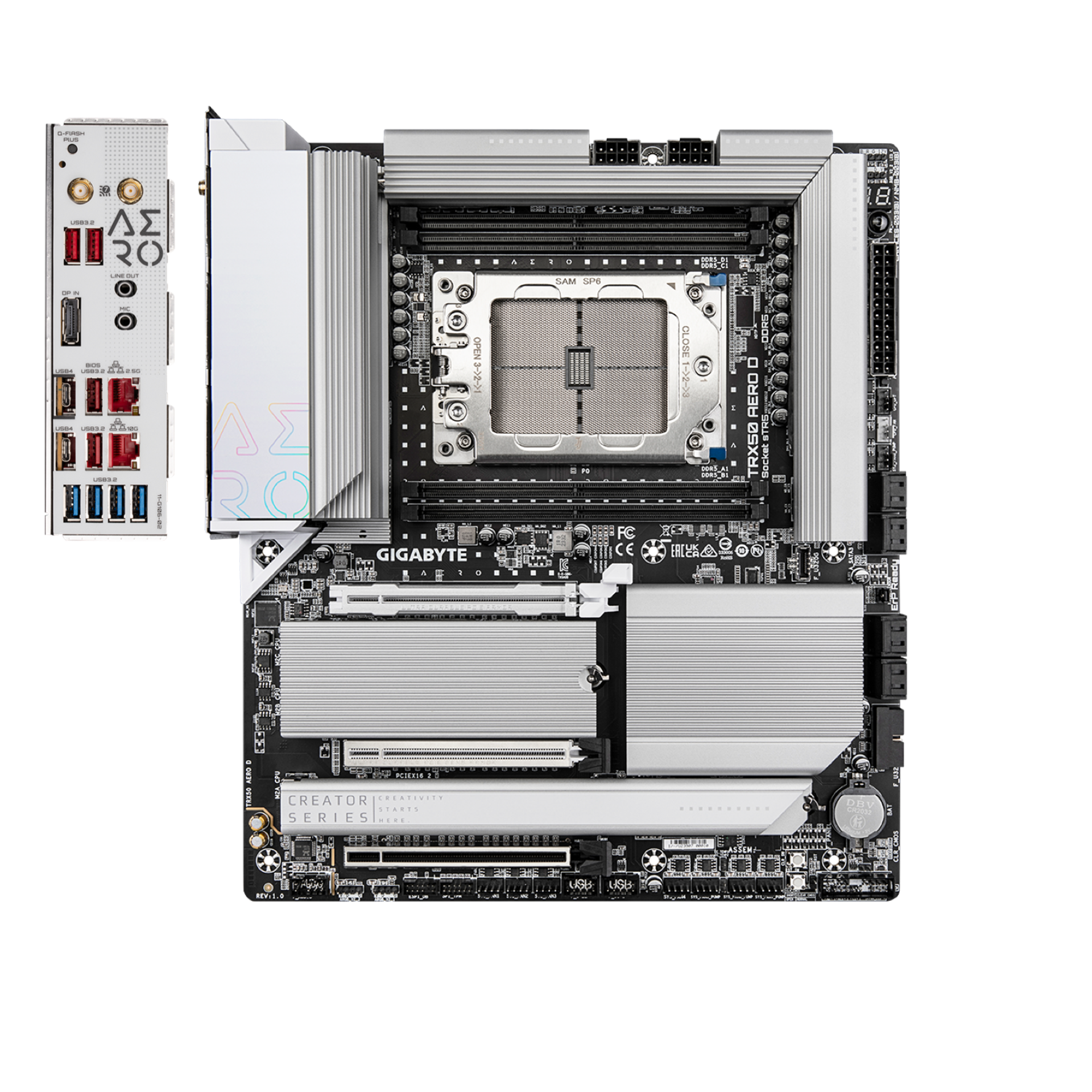

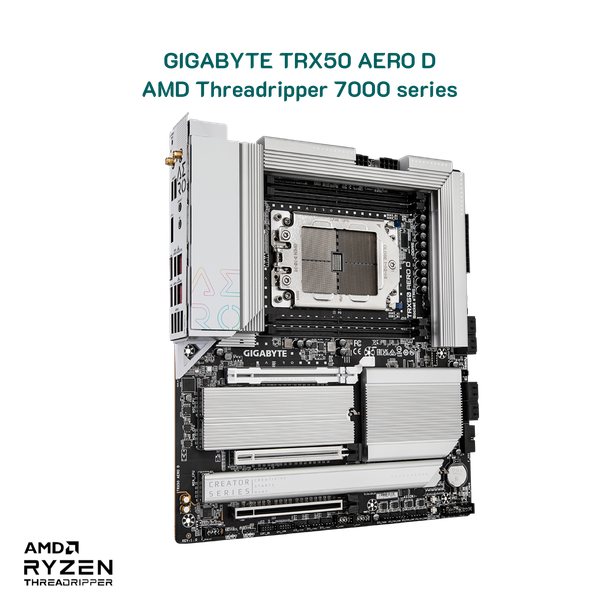

Mainboard workstation Gigabyte TRX50 AERO D – Socket sTR5
Tính năng nổi bật
- Hỗ trợ AMD Threadripper và AMD Threadripper PRO 7000
- Hỗ trợ đến 1TB RAM tốc độ 8000 MT/s (OC)
- Có 1 cổng LAN 10 10GbE và 1 cổng 2.5GbE
- Hỗ trợ wifi 7, bluetooth 5.3
- Hỗ trợ RAID 0, 1, 10 cho cả NVMe và SATA
- Trang bị USB4
Mô tả
Thông số
Physical Stats
Form factor
ATX
Kích thước
305W x 244D mm
CPU
CPU
AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors
Số socket
1
Loại chân cắm socket
TRX50
Số nhân CPU / socket
-
TDP / socket
-
Chipset
AMD TRX50
RAM
Số khe RAM
4 khe DIMM DDR5
Số kênh RAM
4 kênh
Dung lượng RAM
Tối đa 1TB Registered ECC DDR5
Loại RAM
REG ECC DIMM - RDIMM
Kích thước
16GB, 32GB, 64GB, 128GB, 256GB
Network
LAN tích hợp
Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Giao diện lưu trữ
SATA support
Yes
RAID support
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices <br />
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
SAS
N/A
Video
VGA
No
Audio
Audio
Realtek® ALC4080 CODEC (rear panel audio)
- Support for DTS:X® Ultra
- High Definition Audio
- 2-channel
Realtek® ALC897 CODEC (front panel audio)
Cổng I/O
Sau
-
Trong
-
Khe cắm PCIe mở rộng
Slot 1, 2
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
Slot 3
1 x PCI Express x16 slot (PCIEX16_3), integrated in the CPU:
- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000/7000 Series Processors support PCIe 4.0 x16 mode
Khe cắm M.2
Số khe M.2 trên mainboard
3
Slot
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
Wireless
Wireless
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.
USB
USB
CPU:
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+Intel® JHL8540 USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
CPU+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Datasheets
Đang cập nhật
