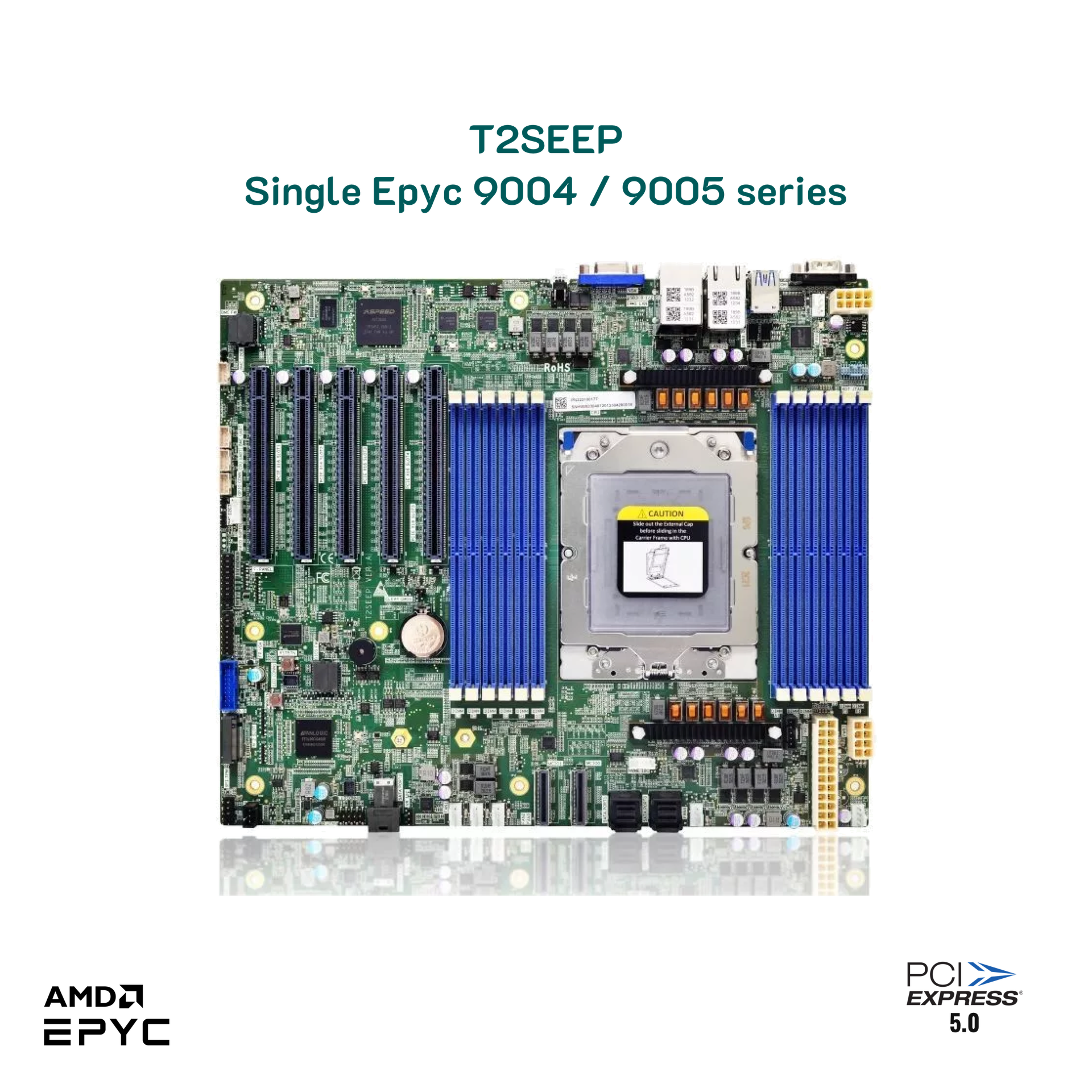

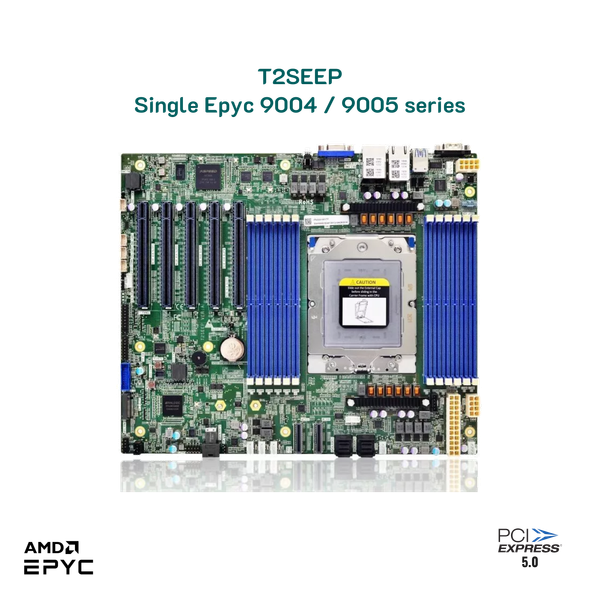

Mainboard server T2SEEP single AMD EPYC 9004/9005 series - PCIe 5.0 ready
21.000.000 ₫
condition
Từ khóa: sp5, amd epyc, t2seep
Giá không bao gồm VAT
Mô tả
Thông số
Physical Stats
Plate type
ATX, 12"×9.6" (307.4mm × 256.5mm)
CPU
Processor
Supports 1 AMD EPYC 9004 series processor with a maximum power of 400W
Socket
SP5
RAM
Số khe RAM
12 DDR5 memory slots
Dung lượng RAM
Up to 3TB
Tốc độ RAM tối đa
Up to 4800MHz
Loại RAM
RDIMM, 3DS RDIMM
Expansion Slots
PCIe Extensions
5 x PCIe 5.0 x16 slots
Network
Data LAN
2 x 1Gb RJ45 data network ports with NCSI support
Storage
SATA
12 x SATA 3.0 (3 x SFF-8643)
NVMe
2 MCIOs (PCIe 5.0 x8), can support 4 NVMe
M.2
1 x M.2 port, SATA 3.0 / PCIe 4.0 x4, 2280 & 22110
I/O Ports

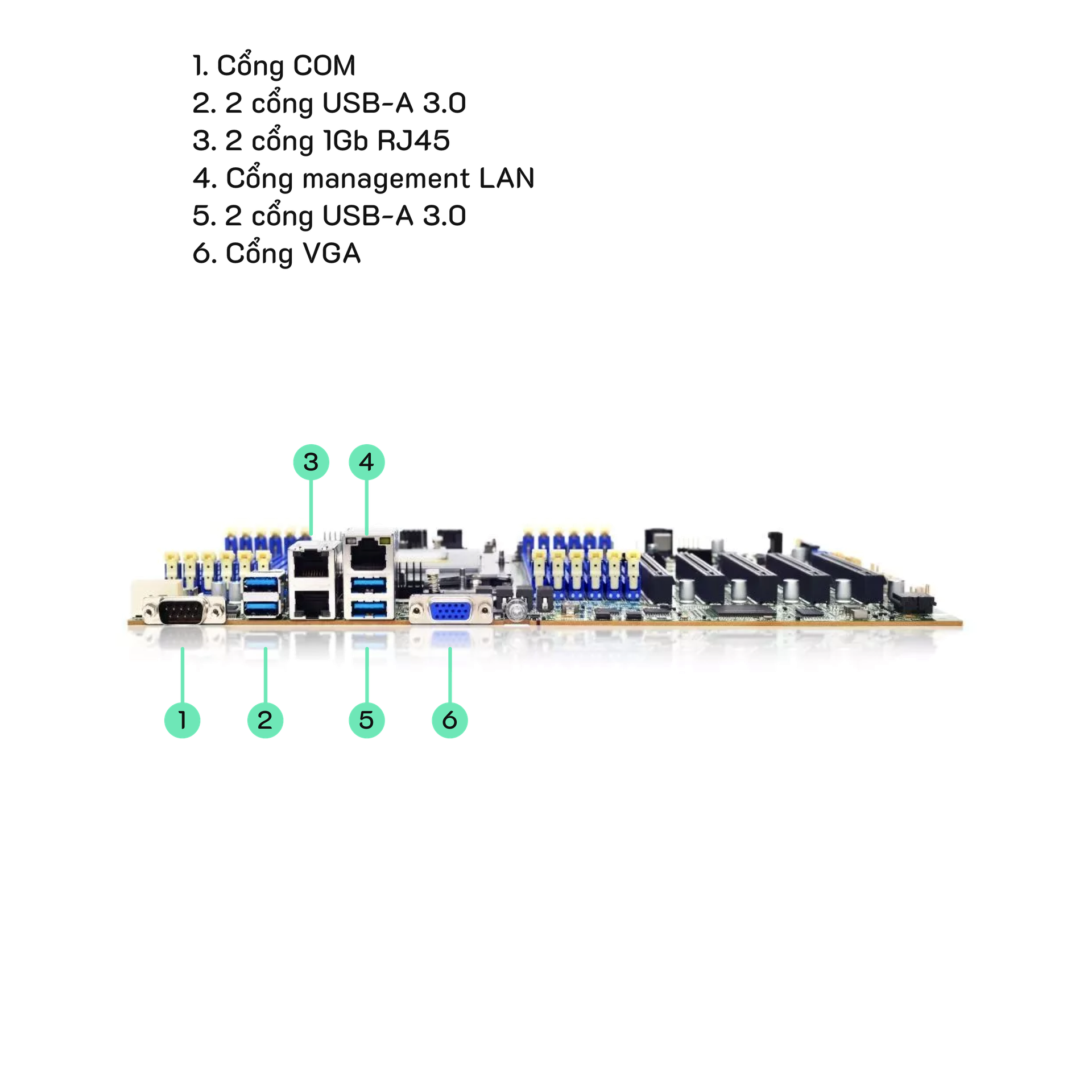

Rear
1 COM, 4 x USB 3.0, 1 x 1Gb RJ45 management port, 2 x 1Gb RJ45 data network ports, 1 VGA, 1 UID (button & indicator)
On-board I/O
FAN
6 x 4-pin FAN, supports fan speed detection & auto-speed adjustment
VGA Header
1 x VGA header for FP
TPM
1 x SPI TPM header
USB Headers
2 x USB 3.0 headers
Management
BMC
Integrated AST2600, supports IPMI2.0, Redfish, KVM, virtual media
Management LAN
1 x 1Gb RJ45 dedicated management port
Security
TPM
Optional TPM module
Environmental
Operating temperature
5ºC - 35ºC
Storage temperature
-40ºC - 65ºC
Operating humidity
8% to 90% (non-condensing)
Storage humidity
5% to 95% (non-condensing)
OS Support
Supported operating systems
Microsoft Windows Server, Microsoft Hyper-V Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Oracle Linux, VMware ESXi, Citrix XenServer
Datasheets
Đang cập nhật
