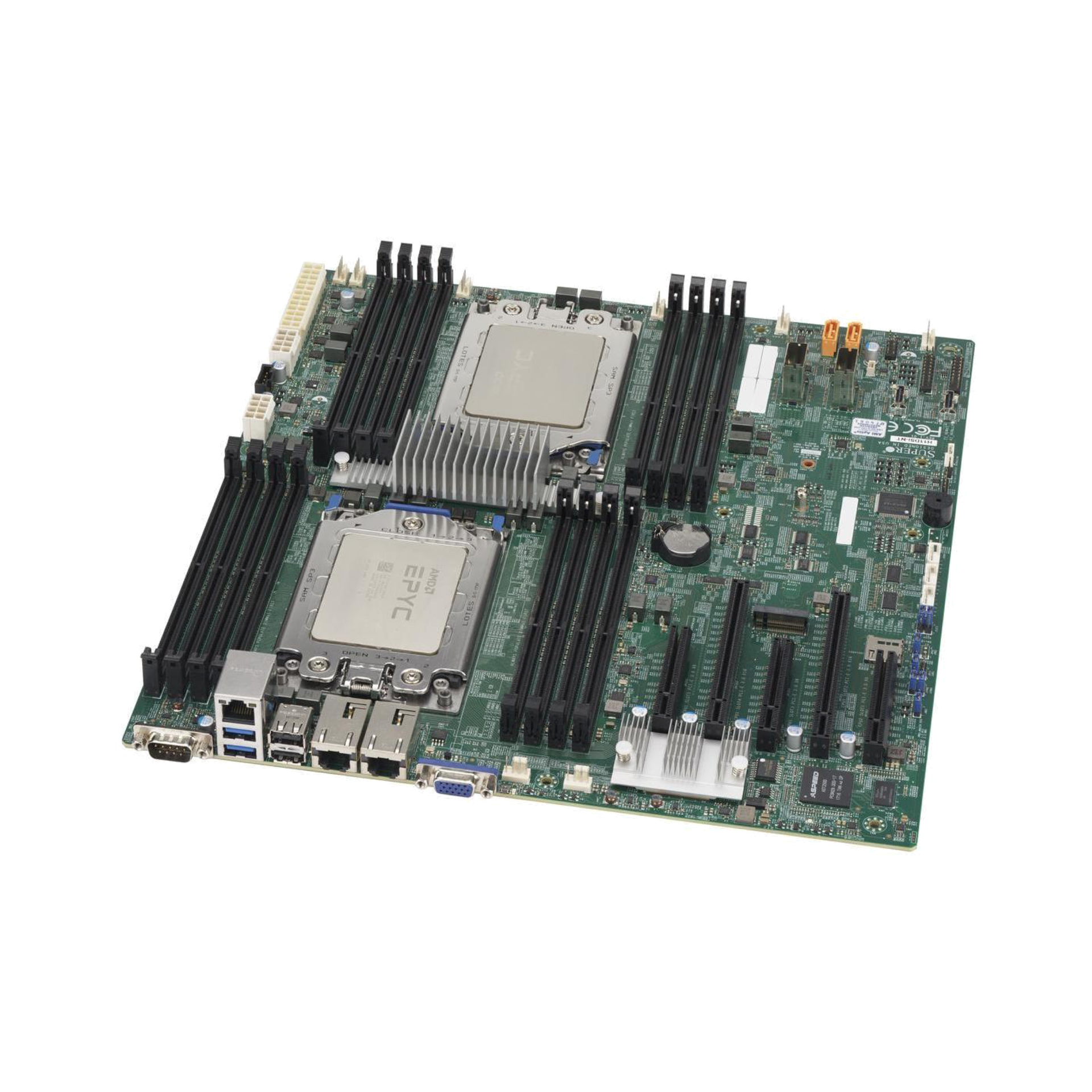

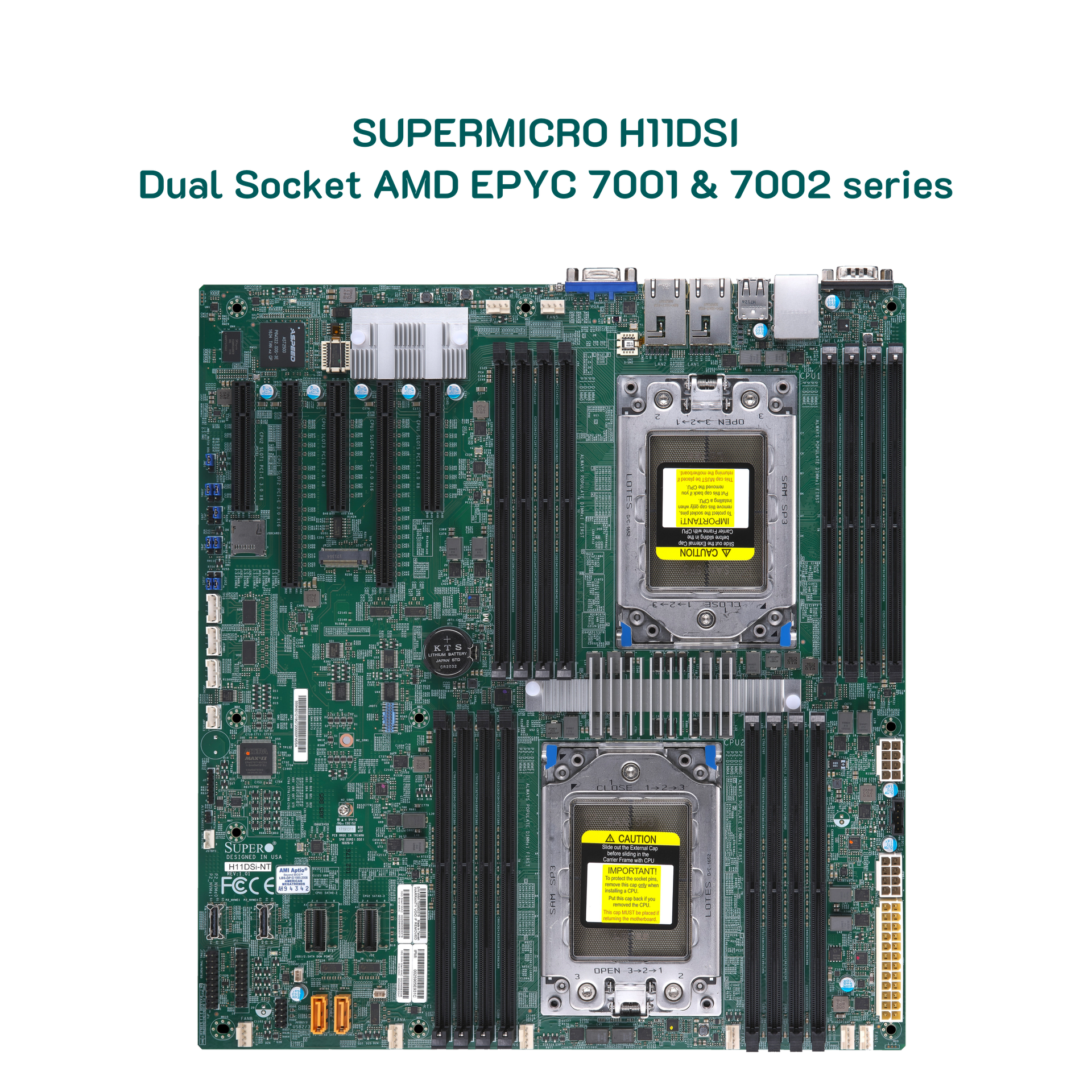

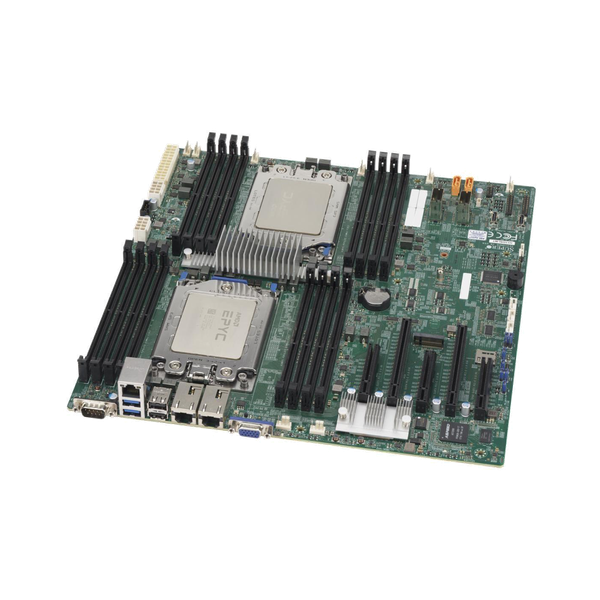

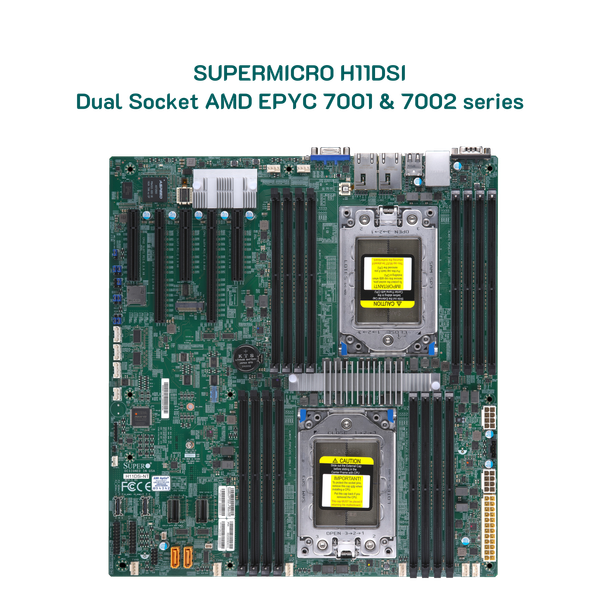

Mainboard server Supermicro H11DSi dual AMD EPYC 7001/7002 series

Thông số kỹ thuật

• Physical Stats

  • Form factor:

    e-ATX
  • Kích thước:

    30.5cm x 33.1cm
• CPU/Chipset

  • CPU:

    Dual AMD EPYC™ 7001/7002* series Processors (*Board revision 2.x required) / Socket SP3 / Tối đa 240W TDP
  • Cores:

    Tối đa 32 nhân / 64 nhân (Board revision 2.x required)
  • Chipset:

    System on Chip
• RAM

  • Số khe RAM:

    16 khe DIMM DDR4
  • Dung lượng RAM:

    Hỗ trợ tới 2TB Registered ECC DDR4 2666MHz SDRAM 16 DIMMs / Hỗ trợ tới 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x)
  • Loại RAM:

    DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs / DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
  • Kích thước:

    8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)
  • Memory Voltage:

    1.2V
  • Error Detection:

    Corrects single-bit errors / Detects double-bit errors (using ECC memory)
• On-Board Devices

  • SATA:

    SATA3 (6 Gbps)

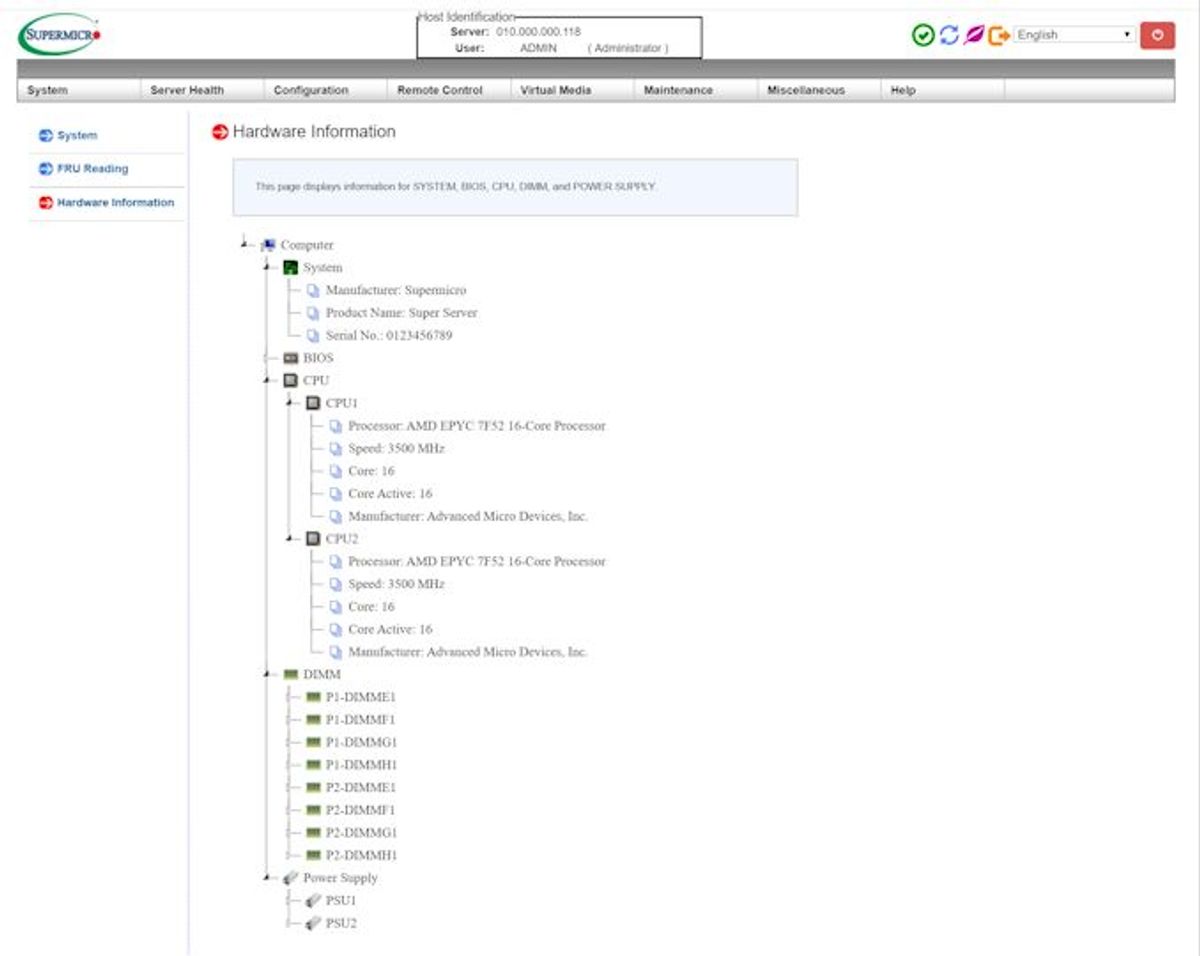

  • IPMI:

    Hỗ trợ Intelligent Platform Management Interface v.2.0 / IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
  • Network Controllers:

    2 x 1GbE LAN via Intel® i350-AM21 / 1 x Realtek RTL8211E PHY (dedicated IPMI)
  • VGA:

    ASPEED AST2500 BMC
• Input / Output

  • SATA:

    10 cổng SATA3 (6 Gbps)
  • LAN:

    2 cổng RJ45 Gigabit Ethernet LAN, 1 cổng RJ45 Dedicated IPMI LAN
  • USB:

    2 cổng USB 3.0 (sau); 4 cổng USB 2.0 (2 sau + 2 qua header)
  • VGA:

    1 cổng VGA
  • Others:

    1 COM cổng (rear) / 2 SATA DOM power connector / 1 TPM 2.0 header
• Khe mở rộng

  • PCI-Express:

    3 PCI-E 3.0 x8, 2 PCI-E 3.0 x16
  • M.2:

    Interface: 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
  • M.2 Form Factor:

    2280, 22110, M-key
