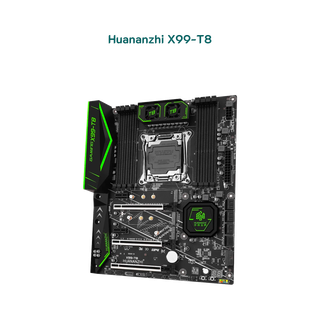

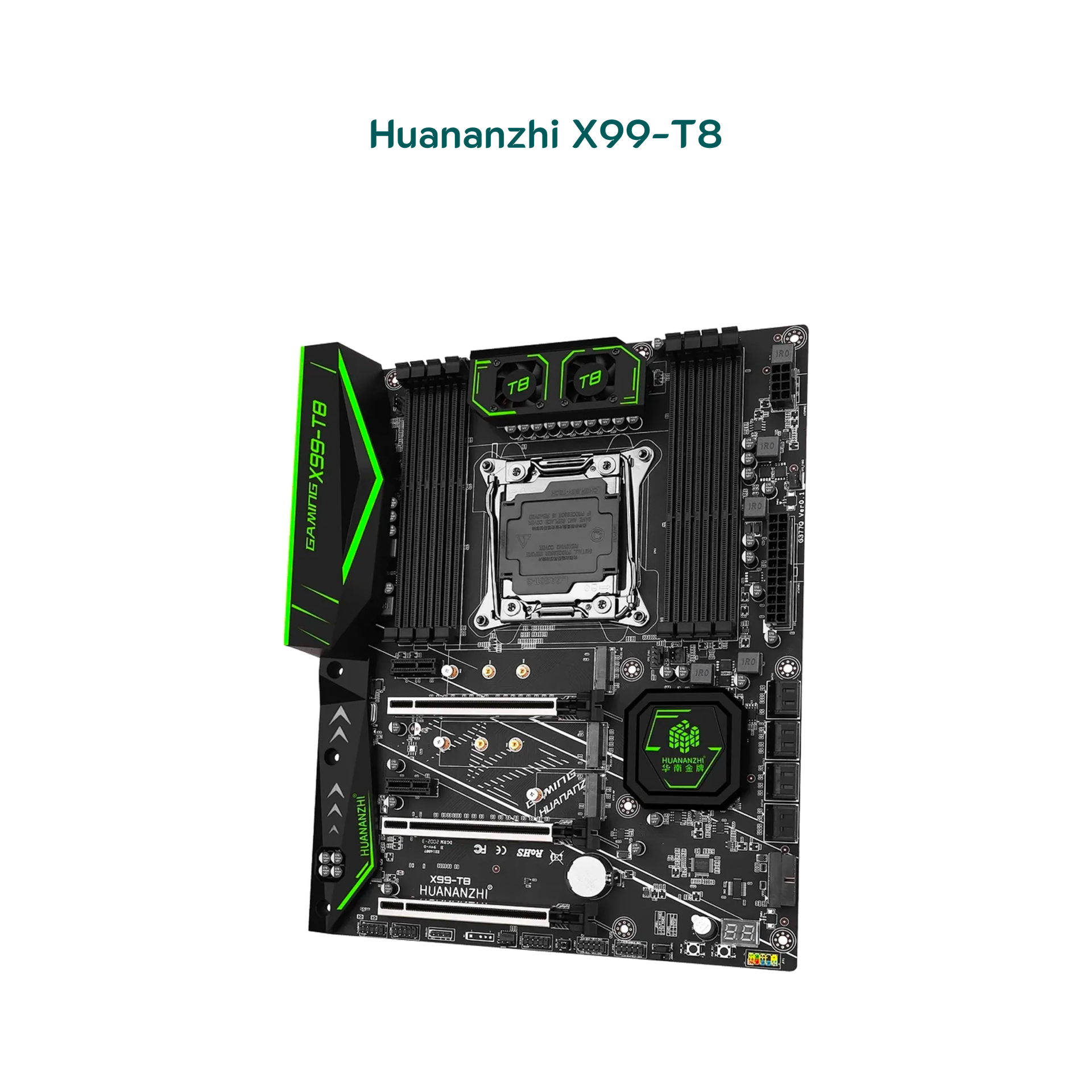

Mainboard HUANANZHI X99 T8 Gaming

Lưu ý: Mainboard chỉ hỗ trợ các CPU sau:

Mainboard	HUANANZHI X99-T8
Platform	Intel® X99, LGA2011-3
Memory	8 x DIMM, Max. 8 x 32GB, DDR3 1866/1600/1333 MHz,Supports ECC or non-ECC Memory, 4 Channel Memory Architecture* CPU Support for DDR3: E5-2629v3 / 2649v3 / 2669v3 / 2673v3 / 2676v3 / 2678v3 / 2696v3
Graphic	No display output portSupports NVIDIA® and AMD® Graphics Cards
Audio	Realtek® ALC892 7.1-Channel, High Definition Audio CODEC
LAN	Realtek® RTL8111H, 1 x 10/100/1000 Mbit LAN Controller(s)
Expansion Slots	2 x PCIe 3.0 x161 x PCIe 3.0 x42 x PCIe 3.0 x1
Storage	8 x SATA3.0 (6GB/s) port(s)2 x M.2 Socket 3, NVMe1 x M.2 Wi-Fi port(s)
Internal I/O Ports	2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)1 x USB 3.0 connector support additional 2 x USB 3.0 port(s)1 x CPU Fan connector(s) (1 x 4-pin) (1 x 4-pin)3 x Chassis Fan connector(s) (1 x 4-pin)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x POST codes display LED
Back I/O Ports	1 x PS/2 Keyboard and Mouse port1 x LAN (RJ45) port(s)4 x USB 2.04 x USB 3.05 x Audio jack(s)1 x Optical S/PDIF Out connector
Form Factor	ATX Form Factor; 30cm x 24.4cm
Packing list	2 x SATA Cable, 1 x Manual
