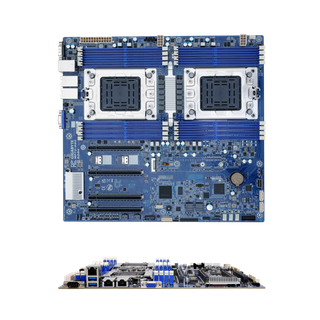

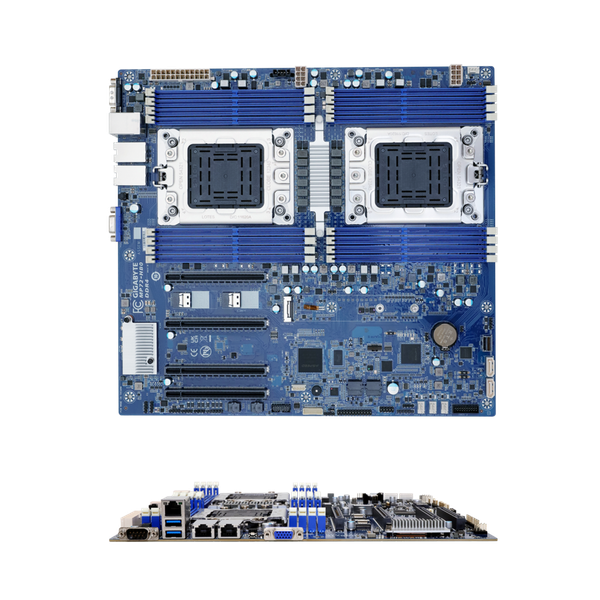

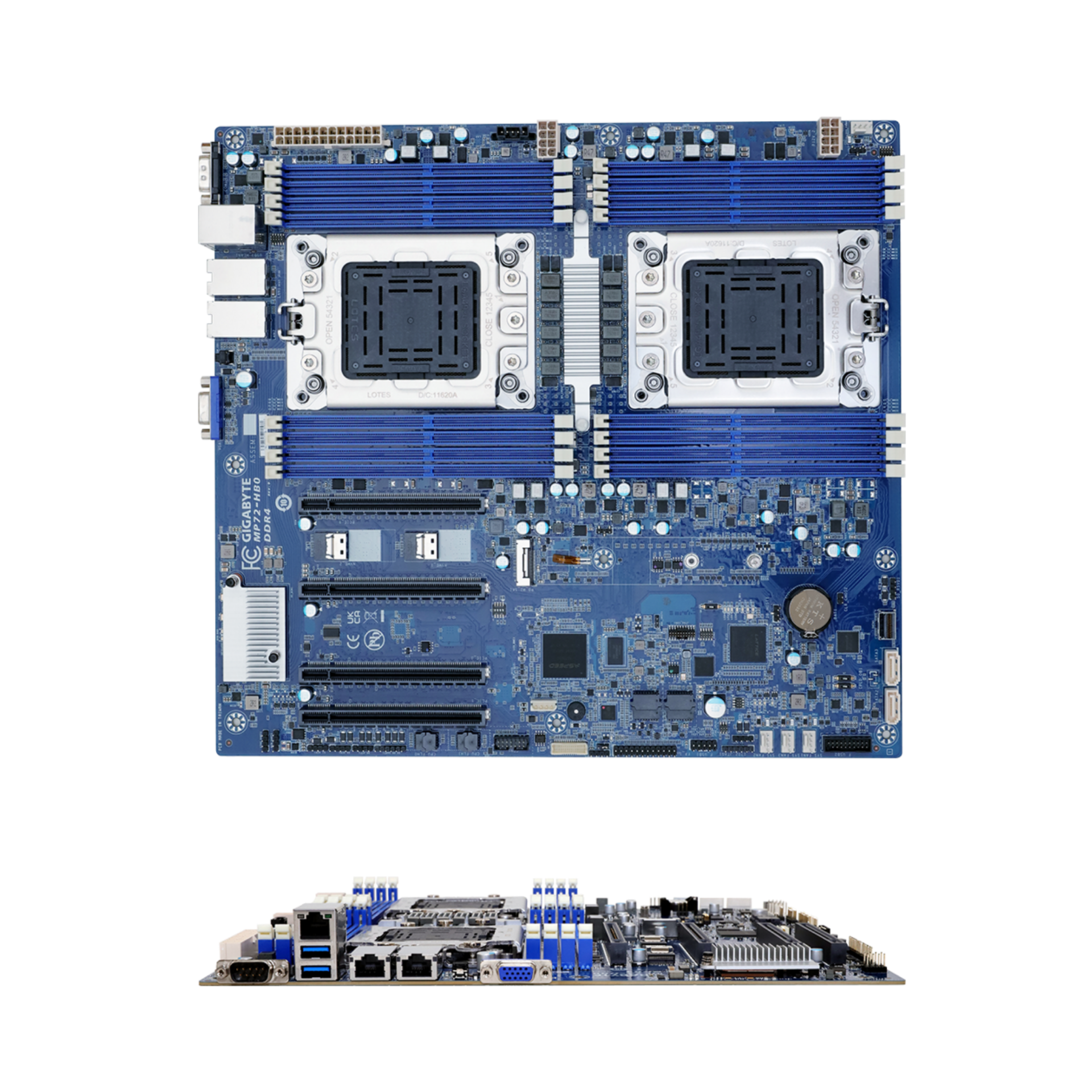

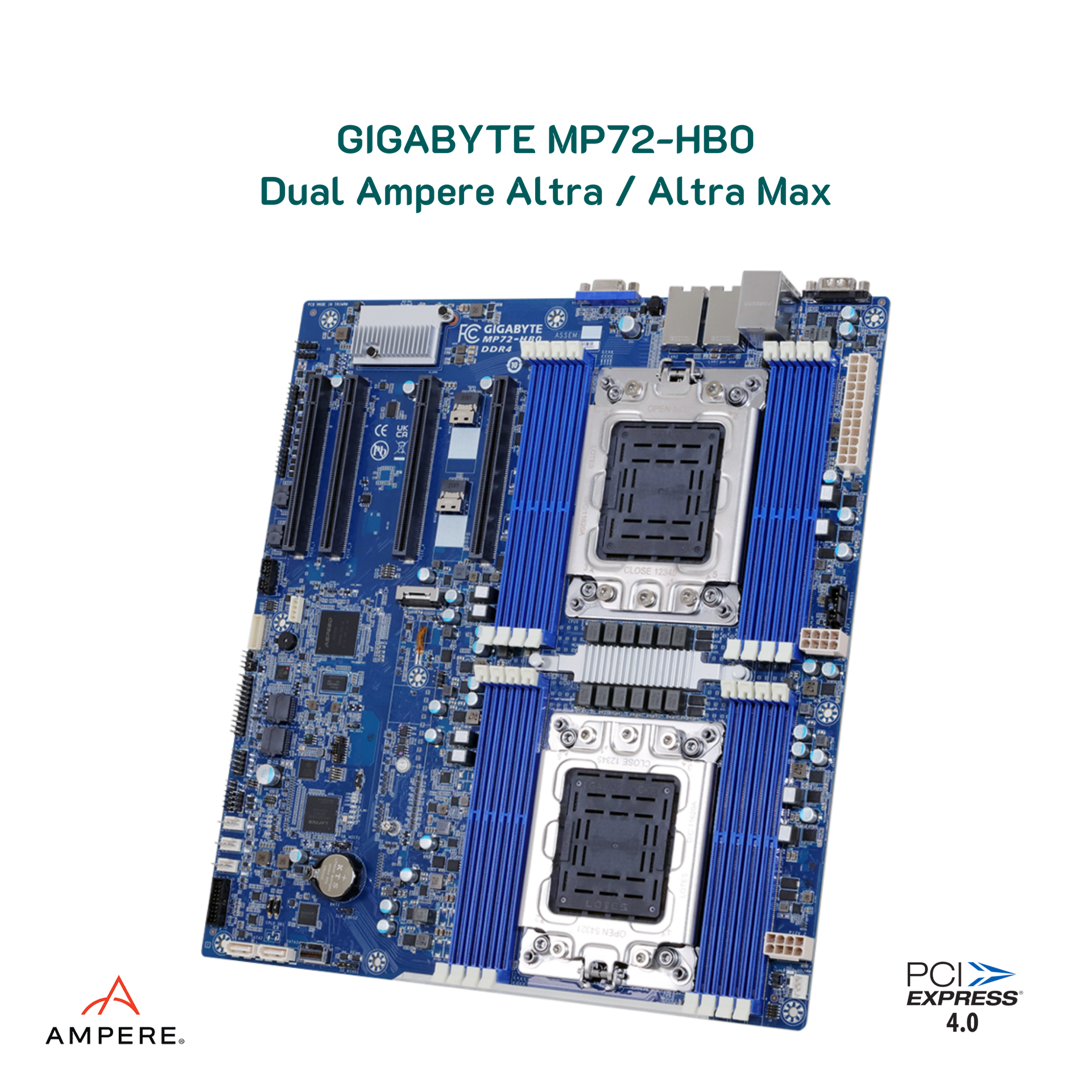

Mainboard Gigabyte MP72-HB0 Dual Ampere Altra / Altra Max

E-ATX

305W x 330D mm

Ampere® Altra® / Altra® Max Processors, Dual processor, 7nm technology

Up to 128 cores, TDP 250W

2 x LGA 4926

System on Chip

16 DIMM slots

DDR4 only, 8-Channel memory architecture

Up to 256GB RDIMM / 256GB LRDIMM

Up to 3200 MT/s

2 x 10Gb/s BASE-T LAN (Broadcom® BCM57416), NCSI support

1 x 10/100/1000 Mbps

Integrated in Aspeed® AST2600, 1920x1200@60Hz 32bpp

N/A

2 x SlimSAS connectors for 2 x Gen4 NVMe

1 x SlimSAS connectors for 4 x SATA 6Gb/s, 2 x SATA 6Gb/s ports

N/A

PCIe x16 (Gen4 x8) slot, from CPU_0

PCIe x16 (Gen4 x16) slot, from CPU_1

PCIe x16 (Gen4 x16) slot, from CPU_0

PCIe x16 (Gen4 x16) slot, from CPU_0

M-Key, PCIe Gen4 x4, supports 2280/22110 cards

1 x 24-pin ATX main, 2 x 8-pin ATX 12V

2 x CPU fan headers, 2 x System fan headers

1 x USB 3.2 Gen1 x2 header, 1 x USB 2.0 header

1 x Front panel header, 1 x Backplane board header, 1 x PMBus connector, 1 x IPMB connector

2 x USB 3.2 Gen1

1 x VGA

2 x RJ45, 1 x MLAN

1 x ID button with LED

1 x TPM header with SPI interface

CTM010 (optional)

CentOS, Debian, Fedora Server, Oracle Linux, RHEL, SUSE Linux Enterprise Server, Ubuntu

Aspeed® AST2600, GIGABYTE Management Console (AMI MegaRAC SP-X)

HTML5 KVM, Sensor Monitor, Power Control, Remote BIOS Update, Event Log, LDAP/AD/RADIUS Support

1 x 24-pin ATX main, 2 x 8-pin ATX 12V
