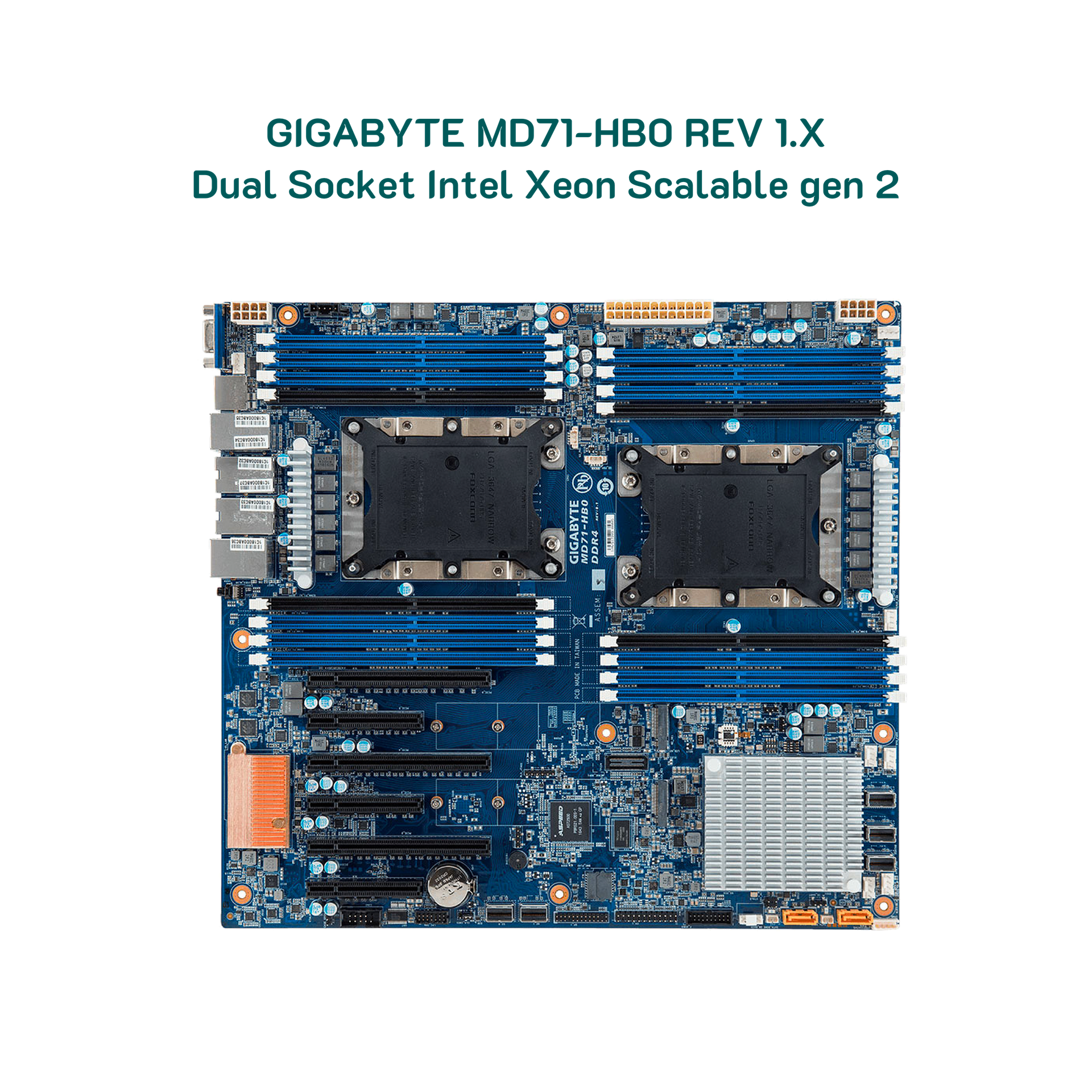

Mainboard server Gigabyte MD71-HB0 Dual Xeon Scalable Gen 2

Thông số kỹ thuật

• Physical Stats

  • Form factor:

    e-ATX
  • Kích thước:

    30.5cm x 33.0cm
• CPU

  • CPU:

    Xeon Scalable gen 2 (Cascade Lake), Xeon Scalable gen 1 (Skylake)
  • Số socket:

    2
  • Loại chân cắm socket:

    LGA 3647, socket P
  • Số nhân CPU / socket:

    Tối đa 32 nhân / 64 nhân (Bo mạch revision 2.x required)
  • TDP / socket

    205W / socket
  • Chipset:

    C622
• RAM

  • Số khe RAM:

    16 khe DIMM DDR4
  • Dung lượng RAM:

    Tối đa 2TB Registered ECC DDR4 2666MHz SDRAM 16 DIMMs
    Tối đa 4TB Registered ECC DDR4 2933MHz SDRAM (Board revision 2.x)
  • Loại RAM:

    REG ECC DIMM - RDIMM
  • Kích thước:

    8GB, 16GB, 32GB, 64GB, 128GB
• Network

  • LAN tích hợp
  • Số cổng RJ-45:

    5
  • Số cổng RJ-45 10GBs

    2
  • Số cổng RJ-45 1GBs

    2
  • Số cổng RJ-45 1GBs management LAN

    1
• Giao diện lưu trữ

  • SATA:

    3 x SlimSAS for 12 x SATA III 6Gb/s ports
    2 x 7-pin SATA III 6Gb/s with SATA DOM supported
  • RAID:

    Intel SATA RAID 0/1/10/5
  • SAS:

    N/A
• Video

  • VGA:

    ASPEED AST2500 BMC tích hợp 2D Video Graphic Adapter with PCIe bus interface
    1920x1200@60Hz 32bpp, DDR4 SDRAM
• Audio

  • Audio:

    N/A
• Cổng I/O

  • Sau:

    2 x USB 3.0
    1 x VGA
    1 x COM (RJ45 type)
    4 x RJ45
    1 x MLAN
    1 x ID button with LED
  • Trong:

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    2 x SATA DOM power pin headers
    5 x SlimSAS connectors
    2 x 7-pin SATA connectors
    2 x M.2 slots
    2 x CPU fan headers
    5 x System fan headers
    1 x USB 3.0 header
    1 x COM_2 header
    1 x TPM header
    1 x VROC connector
    1 x Front panel header
    1 x HDD backplane board header
    1 x PMBus connector
    1 x IPMB connector
    1 x Clear CMOS jumper
    1 x BIOS recovery jumper
    1 x Case open header
    1 x Buzzer
• Khe cắm PCIe mở rộng

  • Slot 1:

    1 x PCIe x8 (Gen3 x4 bus) slot, from PCH
  • Slot 2:

    1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0
  • Slot 3:

    1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_0
  • Slot 4:

    1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1
  • Slot 5:

    1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_1
  • Slot 6:

    1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1
• Khe cắm M.2

  • Số khe M.2 trên mainboard:

    2
  • Slot 1:

    M.2 PCIe Gen 3 x4 - size 2280/22110, from CPU_0
  • Slot 2:

    M.2 PCIe Gen 3 x4 - size 2280/22110, from CPU_0
• Khe cắm U.2

  • Loại:

    SlimSAS
  • Slot 1:

    PCIe Gen3 x4 from CPU_1
  • Slot 2:

    PCIe Gen3 x4 from CPU_1
• Lựa chọn bảo mật

  • TPM

    TPM header with LPC interface
  • TPM 2.0 kit

    CTM000 (tùy chọn, không phải mặc định)
• OS

  • For Skylake processors

    Windows Server 2012 R2 with Update
    Windows Server 2016
    Windows Server 2019

    Red Hat Enterprise Linux 6.9 (x64) or later
    Red Hat Enterprise Linux 7.3 (x64) or later
    Red Hat Enterprise Linux 8.0 (x64) or later
    Red Hat Enterprise Linux 9.0 (x64) or later

    SUSE Linux Enterprise Server 11 SP4 (x64) or later
    SUSE Linux Enterprise Server 12 SP2 (x64) or later
    SUSE Linux Enterprise Server 15 (x64) or later

    Ubuntu 16.04.1 LTS (x64) or later
    Ubuntu 18.04 LTS (x64) or later
    Ubuntu 20.04 LTS (x64) or later

    VMware ESXi 6.0 Update3 or later
    VMware ESXi 6.5 or later
    VMware ESXi 6.7 or later
    VMware ESXi 7.0 or later
    VMware ESXi 8.0 or later

    Citrix Xenserver 7.1.0 CU2 or later
    Citrix Xenserver 7.4.0 or later
    Citrix Hypervisor 8.0.0 or later
  • For Cascadelake processors

    Windows Server 2012 R2 with Update
    Windows Server 2016
    Windows Server 2019
    Red Hat Enterprise Linux 7.6 (x64) or later
    Red Hat Enterprise Linux 8.0 (x64) or later
    Red Hat Enterprise Linux 9.0 (x64) or later
    SUSE Linux Enterprise Server 12 SP3 (x64) or later
    SUSE Linux Enterprise Server 15 (x64) or later
    Ubuntu 18.04 LTS (x64) or later
    Ubuntu 20.04 LTS (x64) or later
    Ubuntu 22.04 LTS (x64) or later
    VMware ESXi 6.0 Update3 or later
    VMware ESXi 6.5 Update2 or later
    VMware ESXi 6.7 Update1 or later
    VMware ESXi 7.0 or later
    VMware ESXi 8.0 or later
    Citrix Xenserver 7.1.0 CU2 or later
    Citrix Xenserver 7.5.0 or later
    Citrix Hypervisor 8.0.0 or later
• Board management

  • Quản lý bo mạch chủ

    Aspeed® AST2500 management controller
    Avocent® MergePoint IPMI 2.0 web interface:
    Network settings
    Network security settings
    Hardware information
    Users control
    Services settings
    IPMI settings
    Sessions control
    LDAP settings
    Power control
    Fan profiles
    Voltages, fans and temperatures monitoring
    System event log
    Events management (platform events, trap settings, email settings)
    Serial Over LAN
    vKVM & vMedia (HTML5)
• PSU Connector

  • PSU Connector:

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
