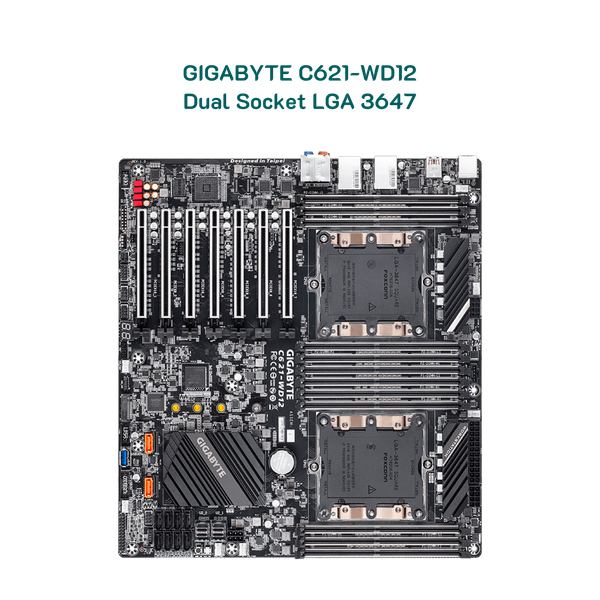

Mainboard Gigabyte C621 WD12

Thông số kỹ thuật

• Physical Stats

  • Form factor:

    e-ATX / EEB
  • Kích thước:

    30.5cm x 33.0cm
• CPU

  • CPU:

    Xeon Scalable gen 2 (Cascade Lake), Xeon Scalable gen 1 (Skylake)
  • Số socket:

    2
  • Loại chân cắm socket:

    LGA 3647, socket P
  • Số nhân CPU / socket:

    Tối đa 32 nhân / 64 nhân (Bo mạch revision 2.x required)
  • TDP / socket

    205W / socket
  • Chipset:

    C621
• RAM

  • Số khe RAM:

    12 khe DIMM DDR4
  • Dung lượng RAM:

    Tối đa 1.5TB Registered ECC DDR4 2666MHz SDRAM 16 DIMMs
    Tối đa 4TB Registered ECC DDR4 2933MHz SDRAM
  • Loại RAM:

    REG ECC DIMM - RDIMM
  • Kích thước:

    8GB, 16GB, 32GB, 64GB, 128GB
• Network

  • LAN tích hợp
  • Số cổng RJ-45:

    2
  • Số cổng RJ-45 10GBs

    0
  • Số cổng RJ-45 1GBs

    2
  • Số cổng RJ-45 1GBs management LAN

    0
  • LAN controller

    Intel 210AT GbE LAN chips (10/100/1000 Mbit) (LAN2, LAN3)
• Giao diện lưu trữ

  • SATA:

    8 x SATA 6Gb/s connectors (I-SATA0~I-SATA7)
    2 x SATA 6Gb/s connectors (S-SATA0, S-SATA1)
  • RAID:

    RAID 0, RAID 1, RAID 5, and RAID 10
  • SAS:

    N/A
• Video

  • VGA:
• Audio

  • Audio:

    Realtek® ALC1220-VB2 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
• Cổng I/O

  • USB

    1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
    1 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    7 x USB 3.1 Gen 1 ports (4 ports on the back panel, 1 port onboard, 2 ports available through the internal USB header)
    2 x USB 2.0/1.1 ports available through the internal USB header
  • Sau:

    1 x PS/2 keyboard/mouse port
    1 x USB Type-C™ port, with USB 3.1 Gen 2 support
    1 x USB 3.1 Gen 2 Type-A port (red)
    4 x USB 3.1 Gen 1 ports
    2 x USB 2.0/1.1 ports
    2 x RJ-45 ports
    1 x optical S/PDIF Out connector
    5 x audio jacks
  • Trong:

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x 6-pin ATX 12V power connector
    2 x CPU fan headers
    5 x system fan headers
    1 x M.2 Socket 3 connector
    10 x SATA 6Gb/s connectors
    2 x U.2 connectors
    2 x SATA DOM power headers
    1 x PMBus connector
    1 x Intel® VROC Upgrade Key header
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.1 Gen 1 header
    1 x USB 3.1 Gen 1 port
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x serial port connector
    1 x chassis intrusion header
    3 x SATA SGPIO headers
    1 x SMD_VMD header
    1 x SMB connector
    1 x TBT connector
    1 x wake on LAN header
    1 x speaker header
    1 x Clear CMOS jumper
    1 x VRM SMB Clock jumper
    1 x VRM SMB Data jumper
    1 x power button
    1 x reset button

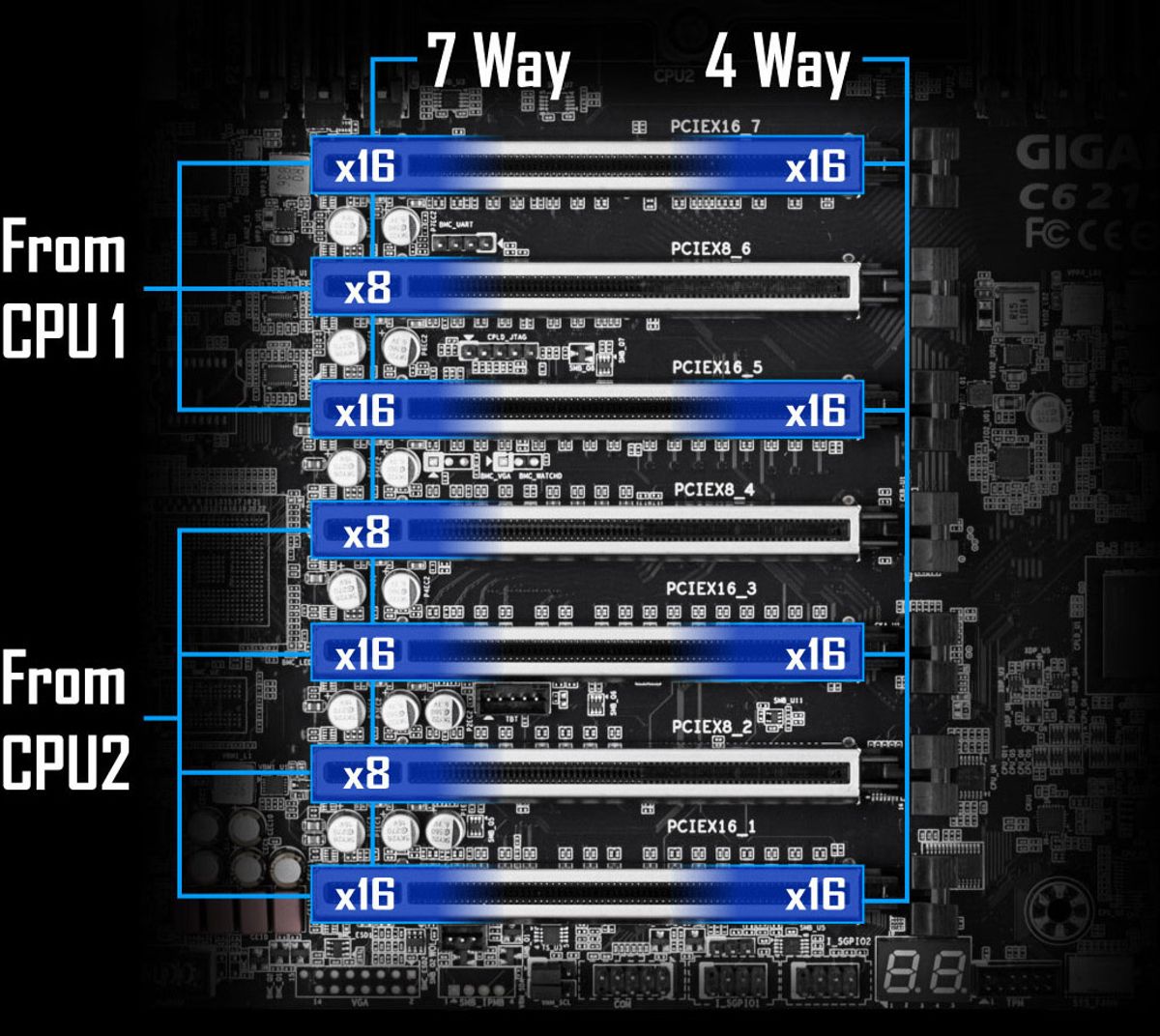

• Khe cắm PCIe mở rộng

  • Slot 1:

    1 x PCIe x16 (Gen3 x4 bus) slot
  • Slot 2:

    1 x PCIe x16 (Gen3 x16 bus) slot
  • Slot 3:

    1 x PCIe x16 (Gen3 x8 bus) slot
  • Slot 4:

    1 x PCIe x16 (Gen3 x16 bus) slot
  • Slot 5:

    1 x PCIe x8 (Gen3 x8 bus) slot, open-ended connector
  • Slot 6:

    1 x PCIe x8 (Gen3 x8 bus) slot, open-ended connector
  • Slot 7:

    1 x PCIe x8 (Gen3 x8 bus) slot, open-ended connector
• Khe cắm M.2

  • Số khe M.2 trên mainboard:

    1
  • Slot 1:

    M.2 PCIe Gen 3 x4 - size 2280/22110
  • Slot 2:
• Khe cắm U.2

  • Số khe cắm U.2

    2
  • Loại:
  • Slot 1:
  • Slot 2:
• Lựa chọn bảo mật

  • TPM
  • TPM 2.0 kit
• OS

  • OS

    Windows server 2012/2016/2019
    Linux
    VMware EXSi 6.5/6.7
• Board management

  • Quản lý bo mạch chủ

    Voltage detection
    Temperature detection
    Fan speed detection
    Fan speed control
• PSU Connector

  • PSU Connector:

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
