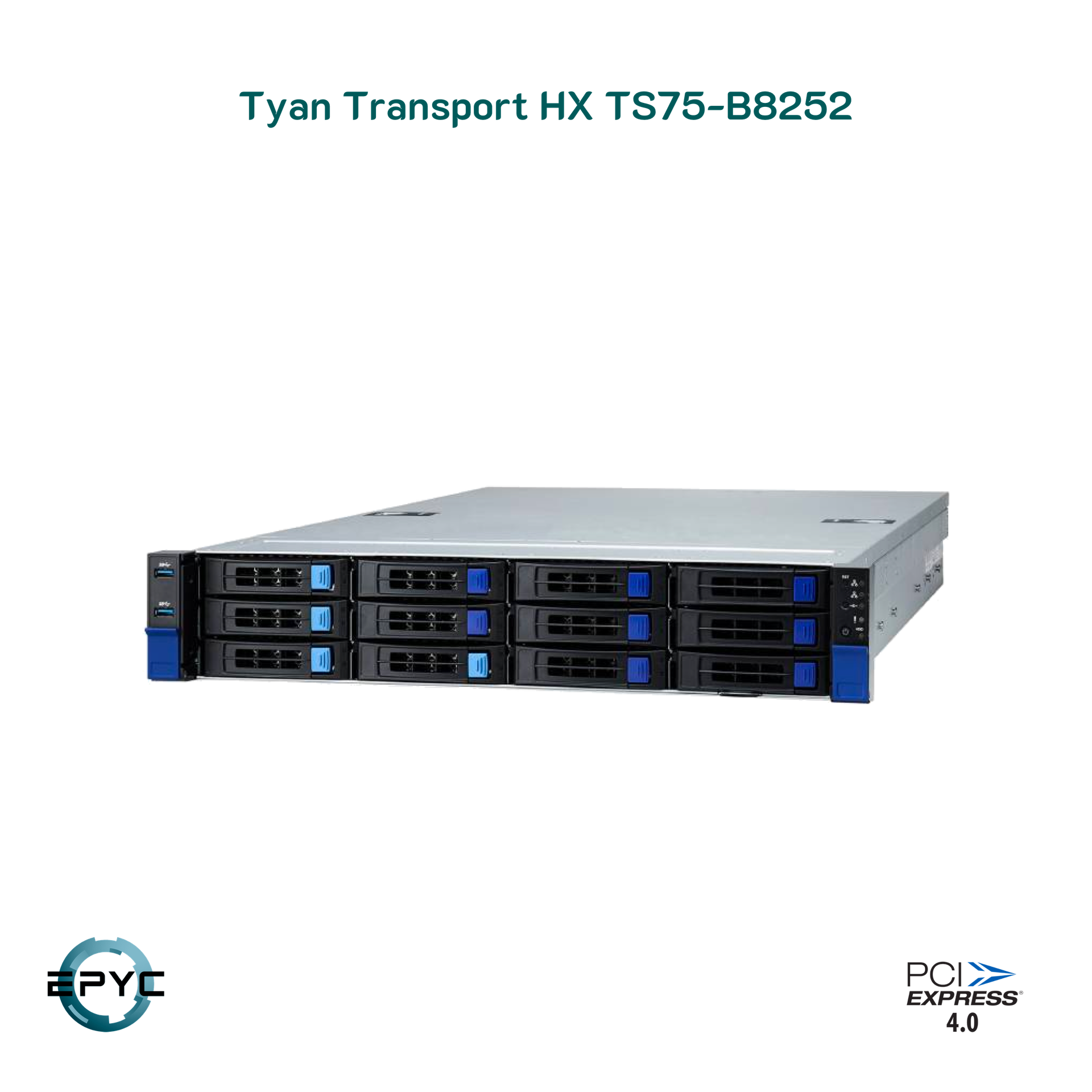

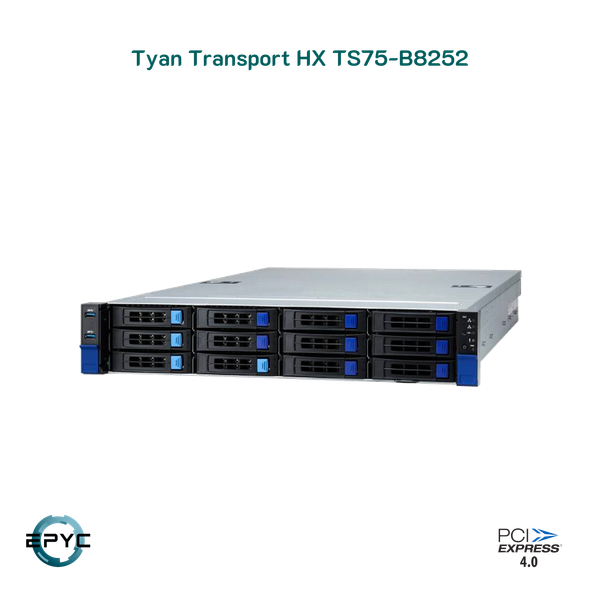

Rack server Tyan Transport HX TS75B8252 Dual Epyc Milan (7003 series)

Thông số kỹ thuật

• Physical Stats

  • Form Factor:

    2U Rackmount
  • Kích thước:

    750.8 x 438.4 x 87 mm
  • Khối lượng:

    Gross: 19 kg
    Net: 19 kg
• Front Panel

  • Buttons:

    (1) ID / (1) PWR w/ LED / (1) RST
  • LEDs:

    (1) HDD / (1) ID / (2) LAN / (1) BMC event
  • I/O Ports:

    (2) USB 3.1 Gen.1 ports
• External Drive Bay

  • Qty / Type:

    (12) 3.5" Hot-Swap HDD/SSDs
  • Front Drive Bay Interface:

    (12) SATA 6Gb/s with (4) NVMe ports
  • Front HDD Backplane Support:

    SAS 12Gb/s /SATA 6Gb/s /NVMe
  • Notification

    The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required
• System Cooling Configuration

  • FAN:

    (6) 6cm fans
• Power Supply

  • Type:

    CRPS
  • Input Range

    AC 100-127V/13A / AC 200-240V/9.5A
  • Frequency

    50/60 Hz
  • Output Watts

    1,000 Watts (100-127V AC input) / 1,600 Watts (200-240V AC input)
  • Efficiency

    80 plus Platinum
  • Redundancy

    1+1
• Processor

  • Q'ty / Socket Type

    (2) AMD Socket SP3
  • Supported CPU Series

    (2) AMD EPYC™ 7002/7003 (with AMD 3D V-Cache™ Technology) Series Processor
  • Thermal Design Power Wattage

    Max up to 280W* (cTDP)
• Memory

  • Supported DIMM Qty

    (16)+(16) DIMM slots
  • DIMM Type / Speed

    DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
  • Capacity

    Up to 8192GB RDIMM
  • Memory channel

    8 Channels per CPU
  • Memory voltage

    1.2V
• Expansion Slots

  • PCIe

    (1) PCIe Gen.4 x8 slot (FH/HL) / (2) PCIe Gen.4 x16 slots (HH/HL) / (2) PCIe Gen.4 x16 slots (FH/10.5"L)
  • Pre-installed TYAN Riser Card (PCIe Gen.4)

    (1) M8252T75-L24-1F riser card for (1) FH/10.5”L PCIe Gen.4 x16 slot (left) / (1) M8252T75-R24-2F riser card for (1) FH/10.5”L PCIe Gen.4 x16 + (1) FH/HL PCIe Gen.4 x8 slots (right) / (1) M8252T75-L16-1L riser card for (1) HH/HL PCIe Gen.4 x16 slot (left) / (1) M8252T75-R16-1L riser card for (1) HH/HL PCIe Gen.4 x16 slot (right)
  • Others

    (1) PCIe Gen.4 x16 OCP 3.0 slot for mezz. w/ pull tab
• LAN

  • Q'ty / Port

    (2) 10GbE ports + (1) GbE dedicated for IPMI
  • Controller

    Intel X550-AT2
  • PHY

    Realtek RTL8211E
• Storage SATA

  • Connector

    (2) SFF-8654 for (12) front SATA ports
  • Controller

    Direct from AMD EPYC CPU
  • Speed

    6Gb/s
  • RAID

    N/A
• Storage NVMe

  • Connector (M.2)

    (2) 22110/2280 (by PCIe Gen.4 interface)
  • Connector (U.2)

    (2) SFF-8654 for (4) NVMe ports
• Graphic

  • Connector type

    D-Sub 15-pin
  • Resolution

    Up to 1920x1200
  • Chipset

    Aspeed AST2500
• I/O Ports

  • USB

    (2) USB3.1 Gen.1 ports (@ rear) / (2) USB3.1 Gen.1 ports (@ front)
  • COM

    (2) headers (COM1, COM2)
  • VGA

    (1) D-Sub 15-pin port
  • RJ-45

    (2) 10 GbE ports + (1) dedicated GbE for IPMI
• Server Management

  • Onboard Chipset

    Onboard Aspeed AST2500
  • AST2500 iKVM Feature

    24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
  • AST2500 IPMI Feature

    IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
