Rack server Tyan Transport HX TS75B8252 Dual Epyc Rome (7002 series)
Tính năng nổi bật
- Hỗ trợ Dual AMD EPYC Milan-X / Milan / Rome
- 32 khe RAM RDIMM DDR4 3200
- 12 khay 3.5" SATA với 4 lựa chọn NVMe U.2 hot swap
- Hỗ trợ đến 4 khe PCIe 4.0 x16 và 1 khe PCIe 4.0 x8
- Hỗ trợ khe PCIe 4.0 x16 OCP v3.0 LAN mezzanine
- (1+1) RPSU
- 2 cổng LAN 10GB
Barebone
CPU
Ổ cứng
RAM
Thương hiệu: Tyan
Mô tả
Tyan Transport HX TS75-B8252 là dòng máy chủ rack server hỗ trợ dual AMD EPYC 7002/7003 series, nổi bật với 4 khe PCIe 4.0 x16 và 2 cổng LAN 10GB/s
02 cổng 10Gbase-T ở phía sau, với Intel X550 controller - là sự nâng cấp đáng kể so với controller Intel i210 1GbE thường thấy trên các dòng máy chủ khác.
Thông số
Physical Stats
Form Factor
2U Rackmount
Kích thước
750.8 x 438.4 x 87 mm
Khối lượng
Gross: 19 kg<br/>Net: 19 kg

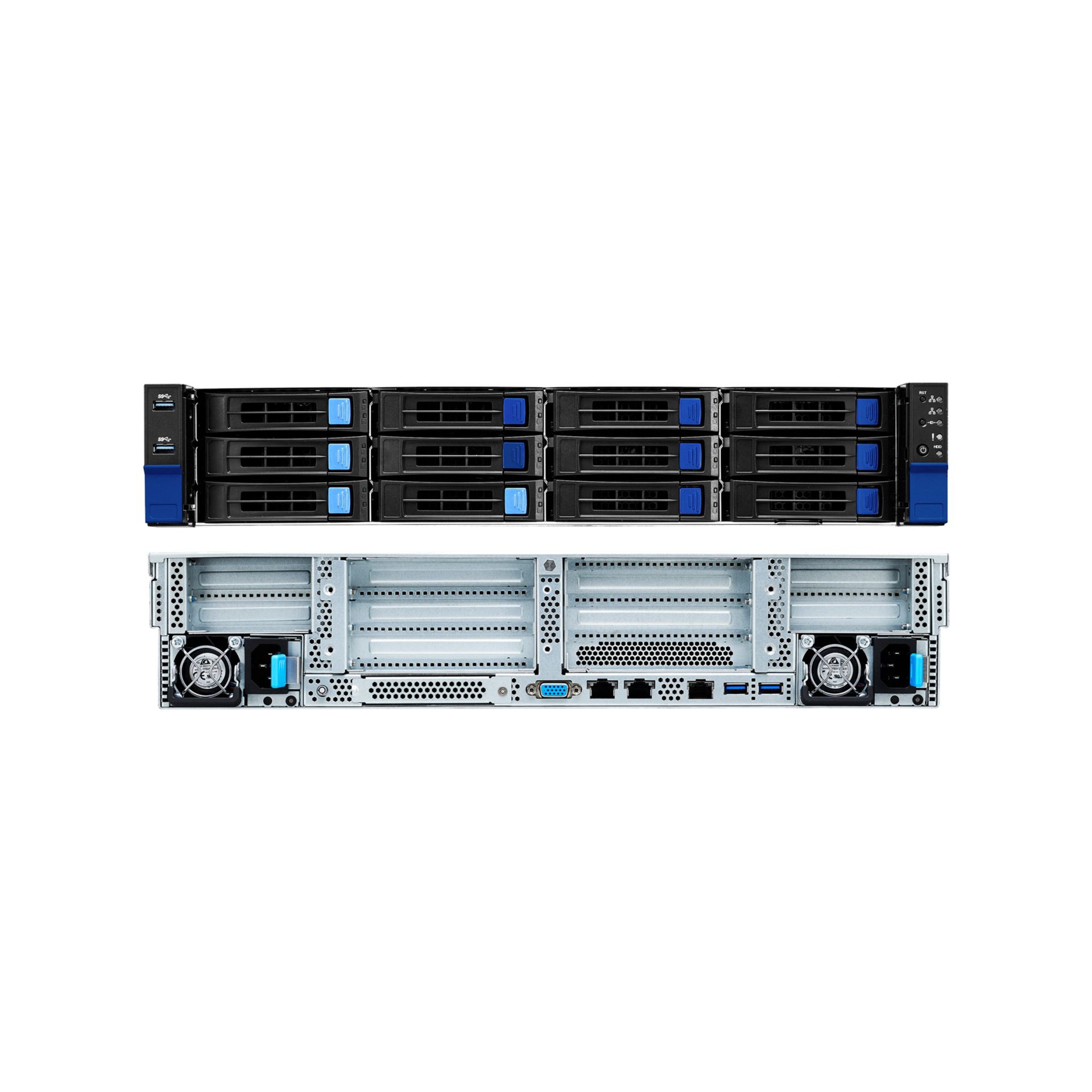

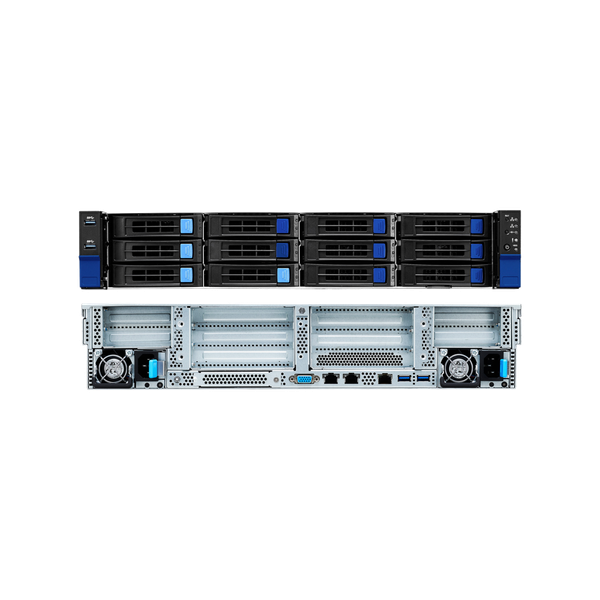

Front Panel
Buttons
(1) ID / (1) PWR w/ LED / (1) RST
LEDs
(1) HDD / (1) ID / (2) LAN / (1) BMC event
I/O Ports
(2) USB 3.1 Gen.1 ports
External Drive Bay
Qty / Type
(12) 3.5" Hot-Swap HDD/SSDs
Front Drive Bay Interface
(12) SATA 6Gb/s with (4) NVMe ports
Front HDD Backplane Support
SAS 12Gb/s /SATA 6Gb/s /NVMe
Notification
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required
System Cooling Configuration
FAN
(6) 6cm fans
Power Supply
Type
CRPS
Input Range
AC 100-127V/13A / AC 200-240V/9.5A
Frequency
50/60 Hz
Output Watts
1,000 Watts (100-127V AC input) / 1,600 Watts (200-240V AC input)
Efficiency
80 plus Platinum
Redundancy
1+1
Processor
Q'ty / Socket Type
(2) AMD Socket SP3
Supported CPU Series
(2) AMD EPYC™ 7002/7003 (with AMD 3D V-Cache™ Technology) Series Processor
Thermal Design Power Wattage
Max up to 280W* (cTDP)
Memory
Supported DIMM Qty
(16)+(16) DIMM slots
DIMM Type / Speed
DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
Capacity
Up to 8192GB RDIMM
Memory channel
8 Channels per CPU
Memory voltage
1.2V
Expansion Slots
PCIe
(1) PCIe Gen.4 x8 slot (FH/HL) / (2) PCIe Gen.4 x16 slots (HH/HL) / (2) PCIe Gen.4 x16 slots (FH/10.5"L)
Pre-installed TYAN Riser Card (PCIe Gen.4)
(1) M8252T75-L24-1F riser card for (1) FH/10.5”L PCIe Gen.4 x16 slot (left) / (1) M8252T75-R24-2F riser card for (1) FH/10.5”L PCIe Gen.4 x16 + (1) FH/HL PCIe Gen.4 x8 slots (right) / (1) M8252T75-L16-1L riser card for (1) HH/HL PCIe Gen.4 x16 slot (left) / (1) M8252T75-R16-1L riser card for (1) HH/HL PCIe Gen.4 x16 slot (right)
Others
(1) PCIe Gen.4 x16 OCP 3.0 slot for mezz. w/ pull tab
LAN
Q'ty / Port
(2) 10GbE ports + (1) GbE dedicated for IPMI
Controller
Intel X550-AT2
PHY
Realtek RTL8211E
Storage SATA
Connector
(2) SFF-8654 for (12) front SATA ports
Controller
Direct from AMD EPYC CPU
Speed
6Gb/s
RAID
N/A
Storage NVMe
Connector (M.2)
(2) 22110/2280 (by PCIe Gen.4 interface)
Connector (U.2)
(2) SFF-8654 for (4) NVMe ports
Graphic
Connector type
D-Sub 15-pin
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500
I/O Ports
USB
(2) USB3.1 Gen.1 ports (@ rear) / (2) USB3.1 Gen.1 ports (@ front)
COM
(2) headers (COM1, COM2)
VGA
(1) D-Sub 15-pin port
RJ-45
(2) 10 GbE ports + (1) dedicated GbE for IPMI
Server Management
Onboard Chipset
Onboard Aspeed AST2500
AST2500 iKVM Feature
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
