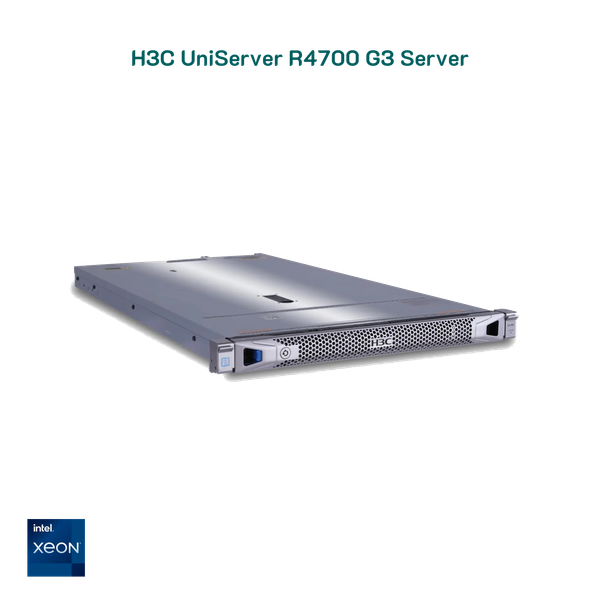

Rack server H3C UniServer R4700 G3 Server

Thông số kỹ thuật

• Physical Stats

  • Form Factor:

    1U Rackmount
  • Kích thước:

    42.88 × 434.59 × 768.3 mm
  • Khối lượng:
• Front Panel

  • Buttons:
  • LEDs:
  • I/O Ports:
• Storage

  • Qty / Type:

    Front 4LFF + rear 2SFF or front 10SFF + rear 2SFF (supports SAS/SATA HDD/SSD and up to 8 front NVMe drives) 480 GB SATA M.2 SSDs
• System Cooling Configuration

  • FAN:

    (6) 6cm fans
• Power Supply

  • Type:

    CRPS
  • Input Range

    AC 100-127V/13A / AC 200-240V/9.5A
  • Frequency

    50/60 Hz
  • Output Watts

    Platinum 550W power supplies (1+1 redundancy)
  • Efficiency

    80 plus Platinum
  • Redundancy

    1+1
• Processor

  • Supported CPU Series

    2 × Intel® Xeon® Scalable processors
  • Thermal Design Power Wattage

    Max up to 205W (cTDP)
• Memory

  • Supported DIMM Qty

    (12)+(12) DIMM slots
  • DIMM Type / Speed

    DDR4 Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM
  • Capacity

    Up to 3TB RDIMM
  • Memory channel

    6 Channels per CPU
  • Memory voltage

    1.2V
• Expansion Slots

  • PCIe

    5 × PCIe 3.0 slots (two standard slots, one for Mezzanine storage controller, and one for Ethernet adapter)
• LAN

  • Q'ty / Port

    1 × onboard 1 Gbps management network port
    1 × mLOM Ethernet adapter that provides 4 × 1GE copper ports or 2 × 10GE copper/fiber ports (Optional)
    1 × PCIe Ethernet adapters (Optional)
• Storage controller

  • Connector

    Embedded RAID controller (SATA RAID 0, 1, 5, and 10)
    Mezzanine HBA card (SATA/SAS RAID 0, 1, and 10) (Optional)
    Mezzanine storage controller (RAID 0, 1, 5, 6, 10, 50, 60, and 1E) (Optional)
    Standard PCIe HBA cards and storage controllers (Optional)
• Server Management

  • HDM (with dedicated management port) and H3C FIST
